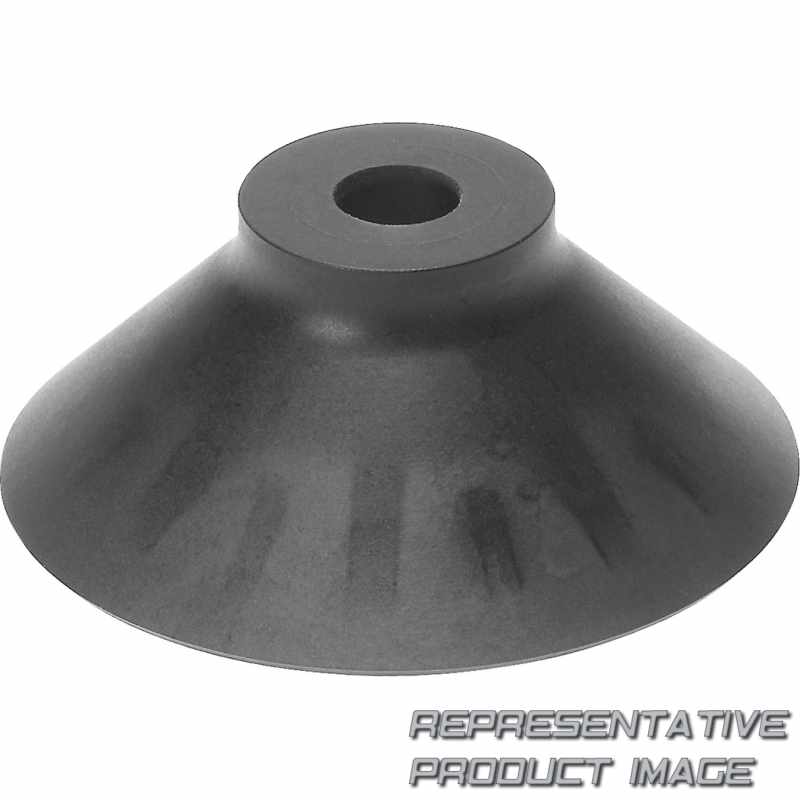

FESTO 526002 suction cup without connector

Name: 526002 FESTO
Brand: FESTO
SKU: 689463-en-gbp
Price: 18.42 GBP
Availability: InStock

ESV-50-GT

£18.42

2 pcs. with 1 to 3 days delivery to United States

Specifications

Material (T)	Polyurethane high-performance elastomer
Additional features	None

Material suction cup		Vulkollan
Shore hardness		72 +/- 5
Type of mounting		Via vacuum port
Lateral force at nominal operating pressure		30 N
Breakaway force at 70% vacuum		97 N
Operating medium		Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Operating pressure		-0,95 bar ... 0 bar
Symbol		00991485
Mounting position		optional
Suction cup diameter		50 mm
Height compensator for suction-cup holder		8 mm

Note on materials		RoHS-compliant
Colour		Red-brown
Product weight		9,2 g
Holding force at nominal operating pressure		97 N
Ambient temperature		-10 °C ... 80 °C
Nominal operating pressure		-0,7 bar
Suction cup shape		Round deep
Design		Round, bell-shaped
Suction cup volume		11,2 cm³
Min. workpiece radius		40 mm
