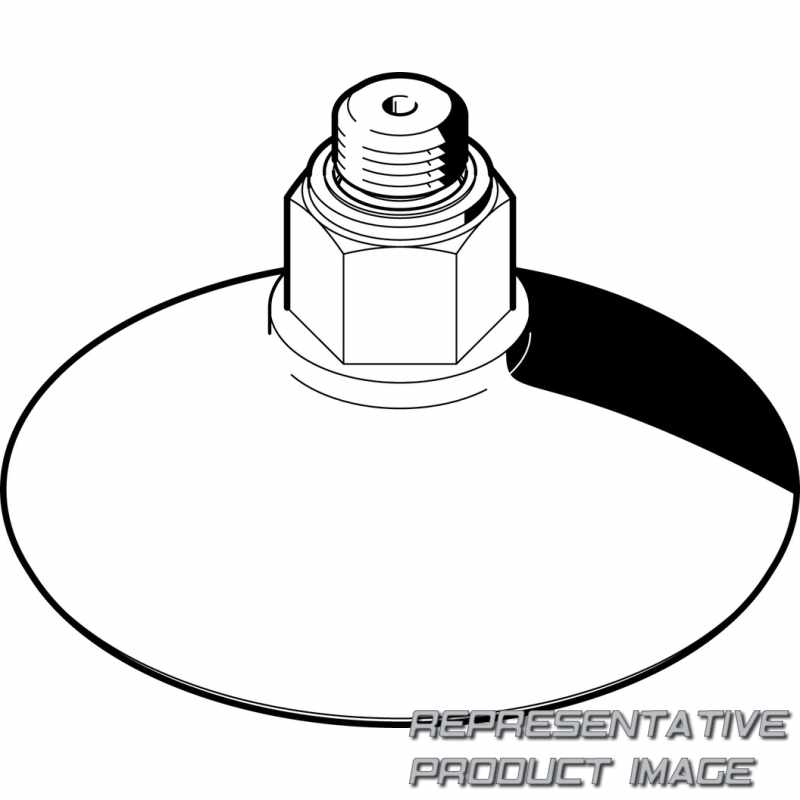

FESTO 525983 suction cup complete

ESS-80-GT-M10

£38.29
1 pcs. with 1 to 3 days delivery to United States

Specifications

Series (ESS) Suction cup complete
Suction cup size (80) 80 mm diameter
Suction cup shape (G) Round, bell shape
Material (T) Polyurethane high-performance elastomer
Additional features None
Vacuum connection (M10) Threaded connection M10
Thread type Male thread
Material suction cup Vulkollan
Material screw-in stud Wrought aluminium alloy
Colour Red-brown
Type of mounting Via vacuum port
Lateral force at nominal operating pressure 99 N
Holding force at nominal operating pressure 245 N
Ambient temperature -10 °C ... 80 °C
Operating medium Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Operating pressure -0,95 bar ... 0 bar
Correlation to suction-cup holder Size 5
Design Round, bell-shaped
Suction cup volume 28,6 cm³
Nominal size 5,5 mm
Height compensator for suction-cup holder 7,5 mm
Note on materials RoHS-compliant
Shore hardness 72 +/- 5
Vacuum connection M10
Product weight 28 g
Max. tightening torque for mounting thread 12 Nm
Breakaway force at 70% vacuum 245 N
Corrosion resistance class CRC 2 - Moderate corrosion stress
Nominal operating pressure -0,7 bar
Suction cup shape Round deep
Symbol 00991485
Mounting position optional
Suction cup diameter 80 mm
Min. workpiece radius 100 mm
£38.29
Stock 1 pcs.
Part number 525983
Manufacturer FESTO
