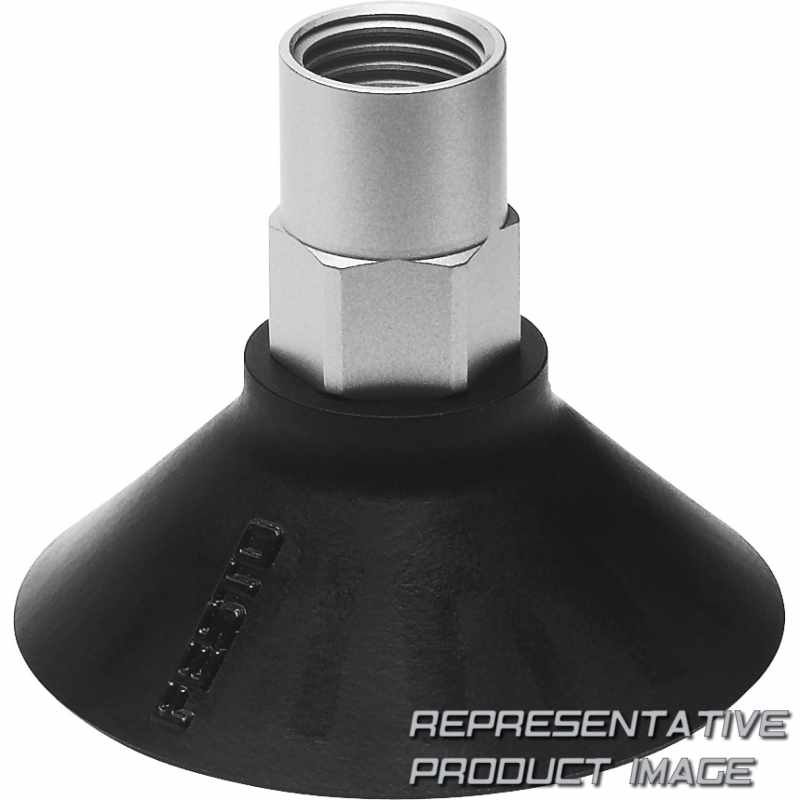

FESTO 525978 suction cup complete

Name: 525978 FESTO
Brand: FESTO
SKU: 687809-en-gbp
Price: 26.78 GBP
Availability: InStock

ESS-50-GT-G1/4-I

£26.78

2 pcs. with 1 to 3 days delivery to United States

Specifications

Series (ESS)	Suction cup complete
Suction cup size (50)	50 mm diameter
Suction cup shape (G)	Round, bell shape
Material (T)	Polyurethane high-performance elastomer

Material suction cup		Vulkollan
Material screw-in stud		Wrought aluminium alloy
Colour		Red-brown
Type of mounting		Via vacuum port
Lateral force at nominal operating pressure		30 N
Ambient temperature		-10 °C ... 80 °C
Operating medium		Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Operating pressure		-0,95 bar ... 0 bar
Symbol		00991485
Suction cup volume		11,2 cm³
Nominal size		2,5 mm
Height compensator for suction-cup holder		8 mm

Note on materials		RoHS-compliant
Shore hardness		72 +/- 5
Vacuum connection		G1/4
Product weight		18 g
Holding force at nominal operating pressure		97 N
Corrosion resistance class CRC		2 - Moderate corrosion stress
Nominal operating pressure		-0,7 bar
Suction cup shape		Round deep
Mounting position		optional
Suction cup diameter		50 mm
Min. workpiece radius		40 mm
