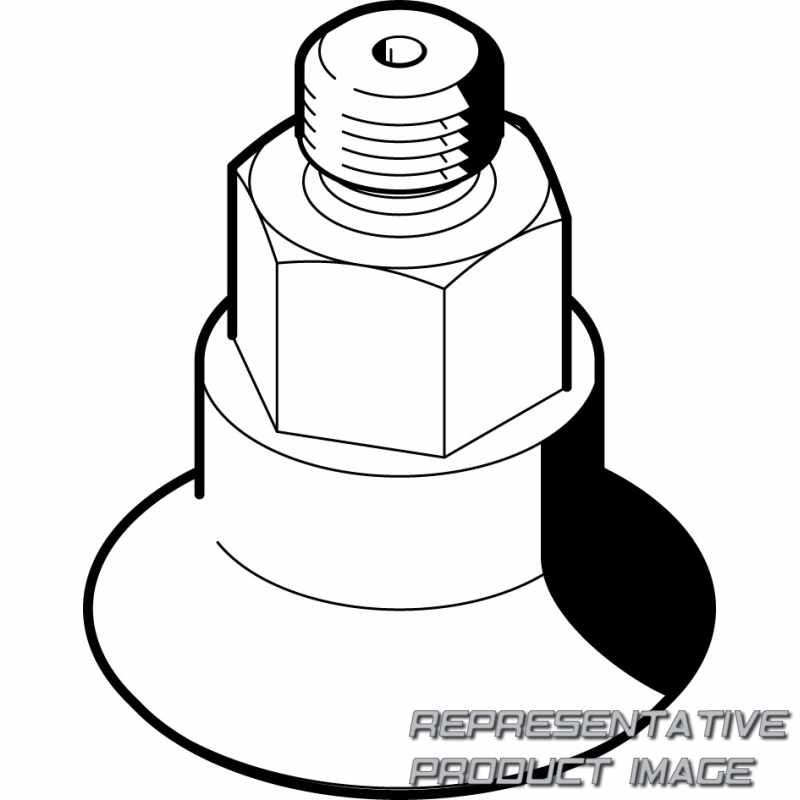

FESTO 525973 suction cup complete

Name: 525973 FESTO
Brand: FESTO
SKU: 661469-en-gbp
Price: 26.45 GBP
Availability: InStock

ESS-40-GT-M10

£26.45 ~~£39.67~~ -33%

2 pcs. with 1 to 3 days delivery to United States

Specifications

Series (ESS)	Suction cup complete
Suction cup size (40)	40 mm diameter
Suction cup shape (G)	Round, bell shape
Material (T)	Polyurethane high-performance elastomer

Material suction cup		Vulkollan
Material screw-in stud		Wrought aluminium alloy
Colour		Red-brown
Type of mounting		Via vacuum port
Lateral force at nominal operating pressure		20 N
Ambient temperature		-10 °C ... 80 °C
Operating medium		Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Operating pressure		-0,95 bar ... 0 bar
Correlation to suction-cup holder		Size 5
Mounting position		optional
Suction cup diameter		40 mm
Min. workpiece radius		35 mm

Note on materials		RoHS-compliant
Shore hardness		72 +/- 5
Vacuum connection		M10
Product weight		15 g
Holding force at nominal operating pressure		64 N
Corrosion resistance class CRC		2 - Moderate corrosion stress
Nominal operating pressure		-0,7 bar
Suction cup shape		Round deep
Symbol		00991485
Suction cup volume		5,4 cm³
Nominal size		2,5 mm
Height compensator for suction-cup holder		5,5 mm
