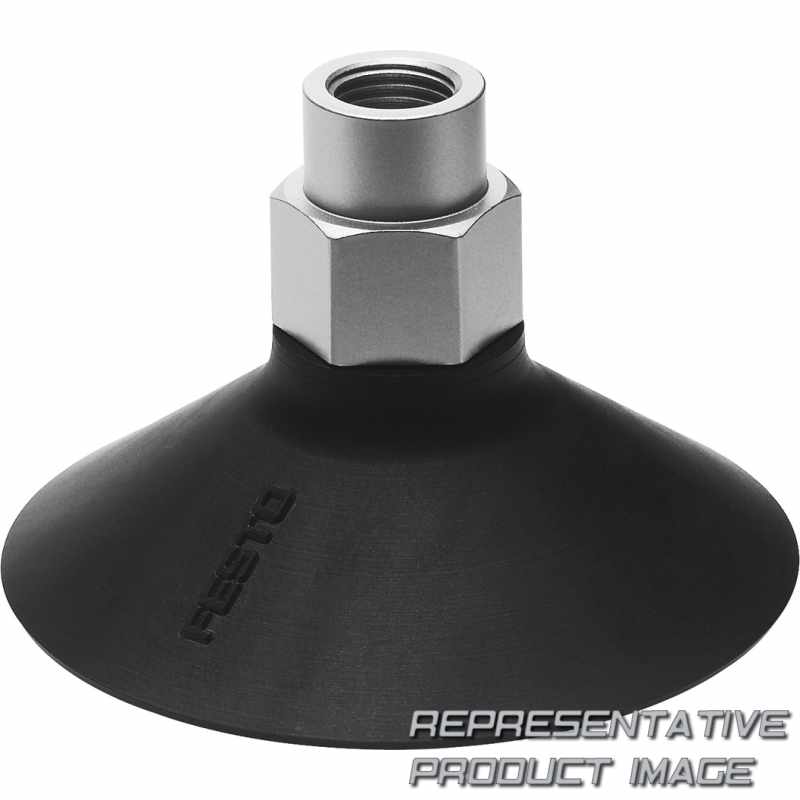

FESTO 525984 suction cup complete

Name: 525984 FESTO
Brand: FESTO
SKU: 668599-en-gbp
Price: 38.29 GBP
Availability: InStock

ESS-80-GT-G1/4-I

£38.29 ~~£57.44~~ -33%

1 pcs. with 1 to 3 days delivery to United States

Specifications

Series (ESS)	Suction cup complete
Suction cup size (80)	80 mm diameter
Suction cup shape (G)	Round, bell shape
Material (T)	Polyurethane high-performance elastomer

Material suction cup		Vulkollan
Material screw-in stud		Wrought aluminium alloy
Colour		Red-brown
Type of mounting		Via vacuum port
Lateral force at nominal operating pressure		99 N
Holding force at nominal operating pressure		245 N
Ambient temperature		-10 °C ... 80 °C
Operating medium		Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Operating pressure		-0,95 bar ... 0 bar
Symbol		00991485
Mounting position		optional
Suction cup diameter		80 mm
Min. workpiece radius		100 mm

Note on materials		RoHS-compliant
Shore hardness		72 +/- 5
Vacuum connection		G1/4
Product weight		61 g
Max. tightening torque for mounting thread		11 Nm
Breakaway force at 70% vacuum		245 N
Corrosion resistance class CRC		2 - Moderate corrosion stress
Nominal operating pressure		-0,7 bar
Suction cup shape		Round deep
Design		Round, bell-shaped
Suction cup volume		28,6 cm³
Nominal size		5,5 mm
Height compensator for suction-cup holder		7,5 mm
