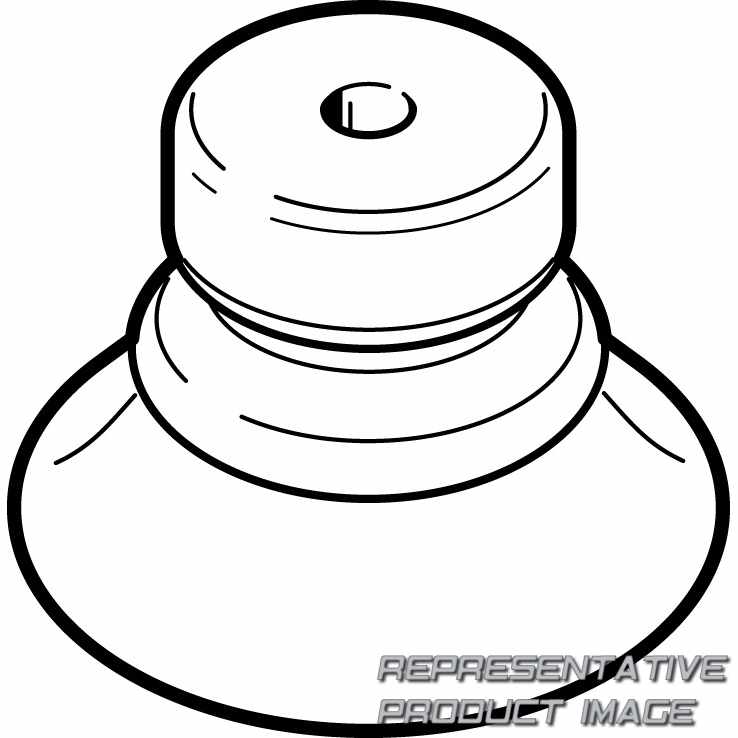

FESTO 191061 suction cup without connector

Name: 191061 FESTO
Brand: FESTO
SKU: 661729-en-gbp
Price: 22.52 GBP
Availability: InStock

ESV-40-BU

£22.52

1 pcs. with 1 to 3 days delivery to United States

Specifications

Material (U)	Polyurethane
Additional features	None

Material suction cup		PUR
Shore hardness		60 +/- 5
Product weight		9,8 g
Ambient temperature		-20 °C ... 60 °C
Operating medium		Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Symbol		00991485
Position of connection		Top
Suction cup diameter		40 mm
Height compensator for suction cup		9,5 mm

Note on materials		Contains paint-wetting impairment substances RoHS-compliant
Colour		Blue
Holding force at nominal operating pressure		52,3 N
Suitable for use with food		See supplementary material information
Suction cup shape		Round bellows 1.5 convolutions
Mounting position		optional
Suction cup volume		11,699 cm³
Min. workpiece radius		90 mm
