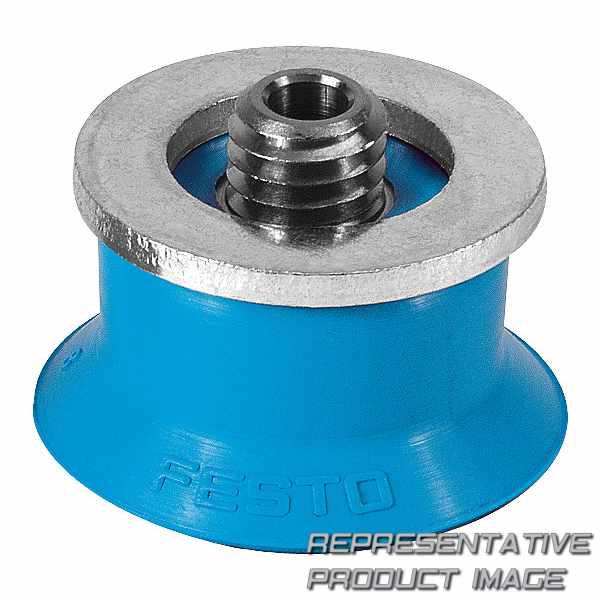

FESTO 189343 suction cup complete

Name: 189343 FESTO
Brand: FESTO
SKU: 688348-en-gbp
Price: 16.23 GBP
Availability: InStock

ESS-30-EU

£16.23

2 pcs. with 1 to 3 days delivery to United States

Specifications

Material suction cup		PUR
Material screw-in stud		Nickel-plated brass Galvanised and chrome-plated steel
Colour		Blue
Type of mounting		Via vacuum port
Lateral force at nominal operating pressure		41,5 N
Ambient temperature		-20 °C ... 60 °C
Corrosion resistance class CRC		1 - Low corrosion stress
Nominal operating pressure		-0,7 bar
Suction cup shape		Round extra deep
Symbol		00991485
Position of connection		Top
Suction cup diameter		30 mm
Min. workpiece radius		50 mm

Note on materials		Contains paint-wetting impairment substances RoHS-compliant
Shore hardness		60 +/- 5
Vacuum connection		M6
Product weight		9,2 g
Holding force at nominal operating pressure		37,2 N
Suitable for use with food		See supplementary material information
Operating medium		Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Operating pressure		0 bar ... 0,95 bar
Correlation to suction-cup holder		Size 4
Mounting position		optional
Suction cup volume		2,12 cm³
Nominal size		3 mm
