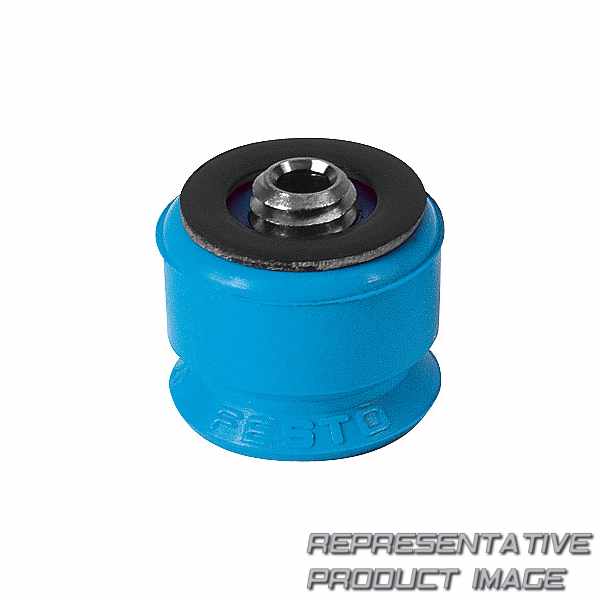

FESTO 189285 suction cup complete

Name: 189285 FESTO
Brand: FESTO
SKU: 682940-en-gbp
Price: 12.58 GBP
Availability: InStock

ESS-10-SU

£12.58

2 pcs. with 1 to 3 days delivery to United States

Specifications

Material suction cup		PUR
Material screw-in stud		Nickel-plated brass
Colour		Blue
Type of mounting		Via vacuum port
Lateral force at nominal operating pressure		7 N
Ambient temperature		-20 °C ... 60 °C
Corrosion resistance class CRC		1 - Low corrosion stress
Nominal operating pressure		-0,7 bar
Suction cup shape		Round, flat
Symbol		00991485
Position of connection		Top
Suction cup diameter		10 mm
Min. workpiece radius		30 mm

Note on materials		Contains paint-wetting impairment substances RoHS-compliant
Shore hardness		60 +/- 5
Vacuum connection		M4
Product weight		1,5 g
Holding force at nominal operating pressure		3,9 N
Suitable for use with food		See supplementary material information
Operating medium		Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Operating pressure		0 bar ... 0,95 bar
Correlation to suction-cup holder		Size 3
Mounting position		optional
Suction cup volume		0,05 cm³
Nominal size		2 mm
