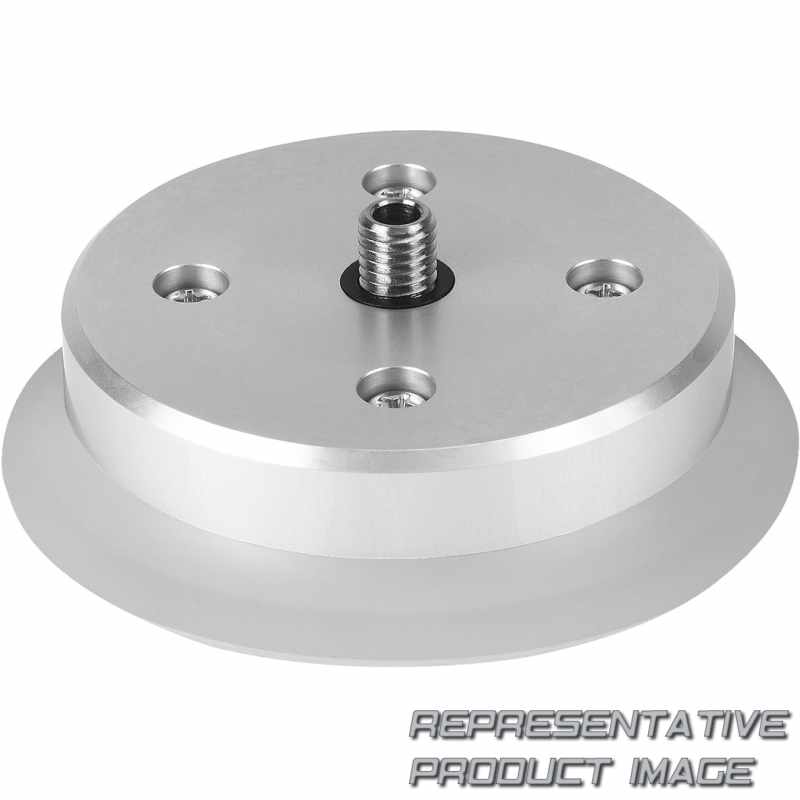

FESTO 189328 suction cup complete

Name: 189328 FESTO
Brand: FESTO
SKU: 661610-en-gbp
Price: 322.48 GBP
Availability: InStock

ESS-150-SS

£322.48

2 pcs. with 1 to 3 days delivery to United States

Specifications

Material suction cup		VMQ (silicone)
Material screw-in stud		NBR Nickel-plated steel Galvanised and chrome-plated steel
Colour		Transparent
Type of mounting		Via vacuum port
Lateral force at nominal operating pressure		400 N
Ambient temperature		-30 °C ... 180 °C
Corrosion resistance class CRC		1 - Low corrosion stress
Nominal operating pressure		-0,7 bar
Suction cup shape		Round, flat
Symbol		00991485
Position of connection		Top
Suction cup diameter		150 mm
Min. workpiece radius		480 mm

Note on materials		Contains paint-wetting impairment substances RoHS-compliant
Shore hardness		50 +/- 5
Vacuum connection		M20x2
Product weight		719 g
Holding force at nominal operating pressure		900 N
Suitable for use with food		See supplementary material information
Operating medium		Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Operating pressure		0 bar ... 0,95 bar
Correlation to suction-cup holder		Size 6
Mounting position		optional
Suction cup volume		173,826 cm³
Nominal size		10 mm
