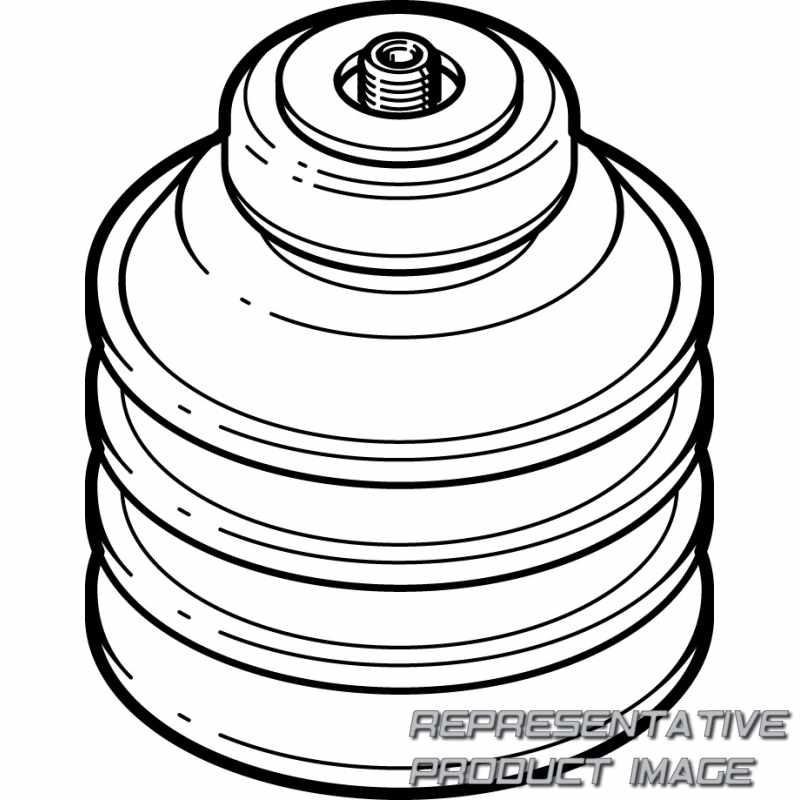

FESTO 189405 suction cup complete

Name: 189405 FESTO
Brand: FESTO
SKU: 669962-en-gbp
Price: 33.35 GBP
Availability: InStock

ESS-40-CS

£33.35 ~~£50.03~~ -33%

2 pcs. with 1 to 3 days delivery to United States

Specifications

Material suction cup		VMQ (silicone)
Material screw-in stud		Nickel-plated wrought aluminium alloy Nickel-plated brass Galvanised and chrome-plated steel
Colour		Transparent
Type of mounting		Via vacuum port
Lateral force at nominal operating pressure		13 N
Ambient temperature		-30 °C ... 180 °C
Corrosion resistance class CRC		1 - Low corrosion stress
Nominal operating pressure		-0,7 bar
Suction cup shape		Round bellows 3.5 convolutions
Symbol		00991485
Position of connection		Top
Suction cup diameter		40 mm
Min. workpiece radius		100 mm

Note on materials		Contains paint-wetting impairment substances RoHS-compliant
Shore hardness		50 +/- 5
Vacuum connection		M6
Product weight		21,9 g
Holding force at nominal operating pressure		42,4 N
Suitable for use with food		See supplementary material information
Operating medium		Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Operating pressure		0 bar ... 0,95 bar
Correlation to suction-cup holder		Size 4
Mounting position		optional
Suction cup volume		19,72 cm³
Nominal size		3 mm
Height compensator for suction cup		12,8 mm
