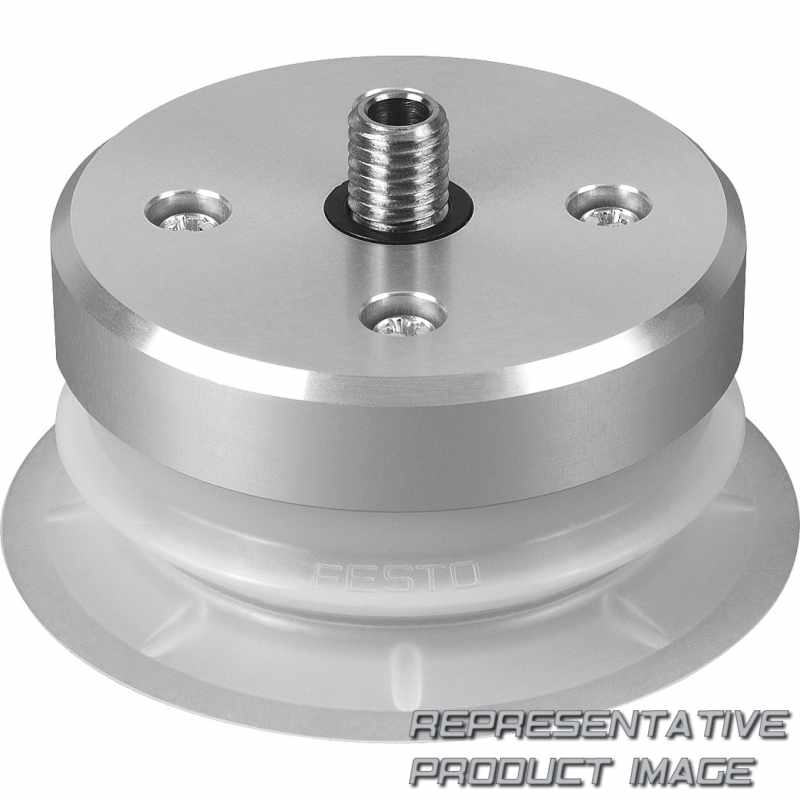

FESTO 189396 suction cup complete

Name: 189396 FESTO
Brand: FESTO
SKU: 673460-en-gbp
Price: 86.7 GBP
Availability: InStock

ESS-80-BS

£86.70

1 pcs. with 1 to 3 days delivery to United States

Specifications

Material suction cup		VMQ (silicone)
Material screw-in stud		POM Nickel-plated steel Galvanised and chrome-plated steel
Colour		Transparent
Type of mounting		Via vacuum port
Lateral force at nominal operating pressure		93 N
Ambient temperature		-30 °C ... 180 °C
Corrosion resistance class CRC		1 - Low corrosion stress
Nominal operating pressure		-0,7 bar
Suction cup shape		Round bellows 1.5 convolutions
Symbol		00991485
Position of connection		Top
Suction cup diameter		80 mm
Min. workpiece radius		430 mm

Note on materials		Contains paint-wetting impairment substances RoHS-compliant
Shore hardness		50 +/- 5
Vacuum connection		M10
Product weight		139 g
Holding force at nominal operating pressure		213,6 N
Suitable for use with food		See supplementary material information
Operating medium		Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Operating pressure		0 bar ... 0,95 bar
Correlation to suction-cup holder		Size 5
Mounting position		optional
Suction cup volume		63,9 cm³
Nominal size		6 mm
Height compensator for suction cup		10 mm
