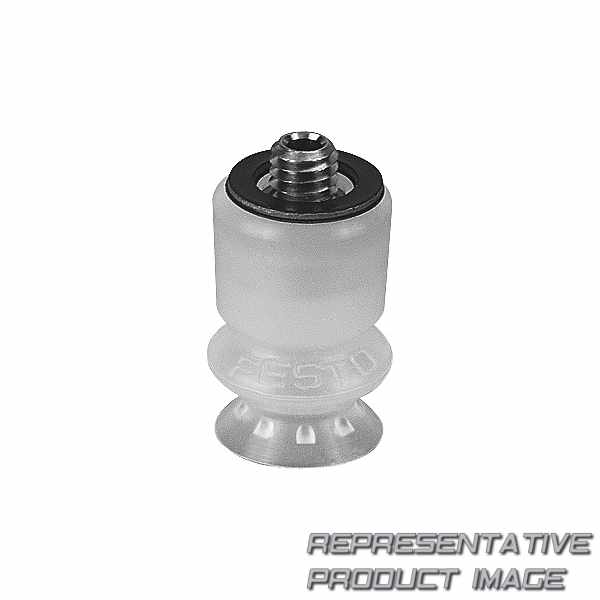

FESTO 189376 suction cup complete

Name: 189376 FESTO
Brand: FESTO
SKU: 671961-en-gbp
Price: 12.77 GBP
Availability: InStock

ESS-10-BS

£12.77

2 pcs. with 1 to 3 days delivery to United States

Specifications

Material suction cup		VMQ (silicone)
Material screw-in stud		Nickel-plated brass
Colour		Transparent
Type of mounting		Via vacuum port
Lateral force at nominal operating pressure		2,5 N
Ambient temperature		-30 °C ... 180 °C
Corrosion resistance class CRC		1 - Low corrosion stress
Nominal operating pressure		-0,7 bar
Suction cup shape		Round bellows 1.5 convolutions
Symbol		00991485
Position of connection		Top
Suction cup diameter		10 mm
Min. workpiece radius		20 mm

Note on materials		Contains paint-wetting impairment substances RoHS-compliant
Shore hardness		50 +/- 5
Vacuum connection		M4
Product weight		1,8 g
Holding force at nominal operating pressure		4,7 N
Suitable for use with food		See supplementary material information
Operating medium		Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Operating pressure		0 bar ... 0,95 bar
Correlation to suction-cup holder		Size 3
Mounting position		optional
Suction cup volume		0,38 cm³
Nominal size		2 mm
Height compensator for suction cup		4 mm
