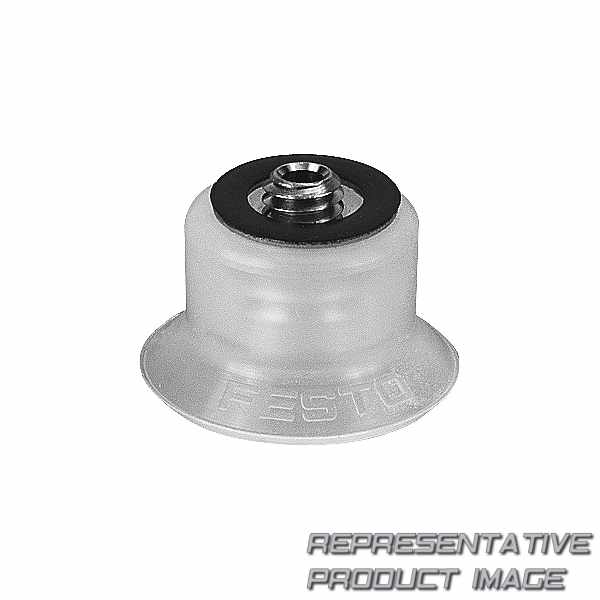

FESTO 189340 suction cup complete

Name: 189340 FESTO
Brand: FESTO
SKU: 686894-en-gbp
Price: 18.86 GBP
Availability: InStock

ESS-20-ES

£18.86

17 pcs. with 2 to 5 days delivery to United States

Specifications

Material suction cup		VMQ (silicone)
Material screw-in stud		Nickel-plated brass Galvanised and chrome-plated steel
Colour		Transparent
Type of mounting		Via vacuum port
Lateral force at nominal operating pressure		13 N
Ambient temperature		-30 °C ... 180 °C
Corrosion resistance class CRC		1 - Low corrosion stress
Nominal operating pressure		-0,7 bar
Suction cup shape		Round extra deep
Symbol		00991485
Position of connection		Top
Suction cup diameter		20 mm
Min. workpiece radius		30 mm

Note on materials		Contains paint-wetting impairment substances RoHS-compliant
Shore hardness		50 +/- 5
Vacuum connection		M6
Product weight		6,4 g
Holding force at nominal operating pressure		17 N
Suitable for use with food		See supplementary material information
Operating medium		Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Operating pressure		0 bar ... 0,95 bar
Correlation to suction-cup holder		Size 4
Mounting position		optional
Suction cup volume		0,84 cm³
Nominal size		3 mm
