| Material air reservoir | High-alloy stainless steel | ||
| Pneumatic connection | G1 | ||
| Type of mounting | With through-hole | ||
| Max. tightening torque for condensate drain | 27 Nm | ||
| Ambient temperature | -10 °C ... 100 °C | ||
| Suitable for use with food | See supplementary material information | ||
| Corrosion resistance class CRC | 3 - high corrosion stress | ||
| Certificate issuing authority | CRN0H15669.5C | ||
| CE mark (see declaration of conformity) | In accordance with EU Pressure Equipment Directive | ||
| Operating pressure | -13,78 psi ... 232 psi | ||
| Conforms to standard | AD 2000 | ||
| Volume | 5 l |
| Note on materials | RoHS-compliant | ||
| Condensate drain connection | G3/8 | ||
| Product weight | 3.581 g | ||
| Max. tightening torque for connecting thread | 130 Nm | ||
| Media temperature | -10 °C ... 100 °C | ||
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | ||
| Operating medium | Compressed air to ISO 8573-1:2010 [-:-:-] Nitrogen | ||
| CE marking (see declaration of conformity) | to UK Pressure Equipment Regulations | ||
| Approval | CRN German Technical Control Board (TÜV) | ||

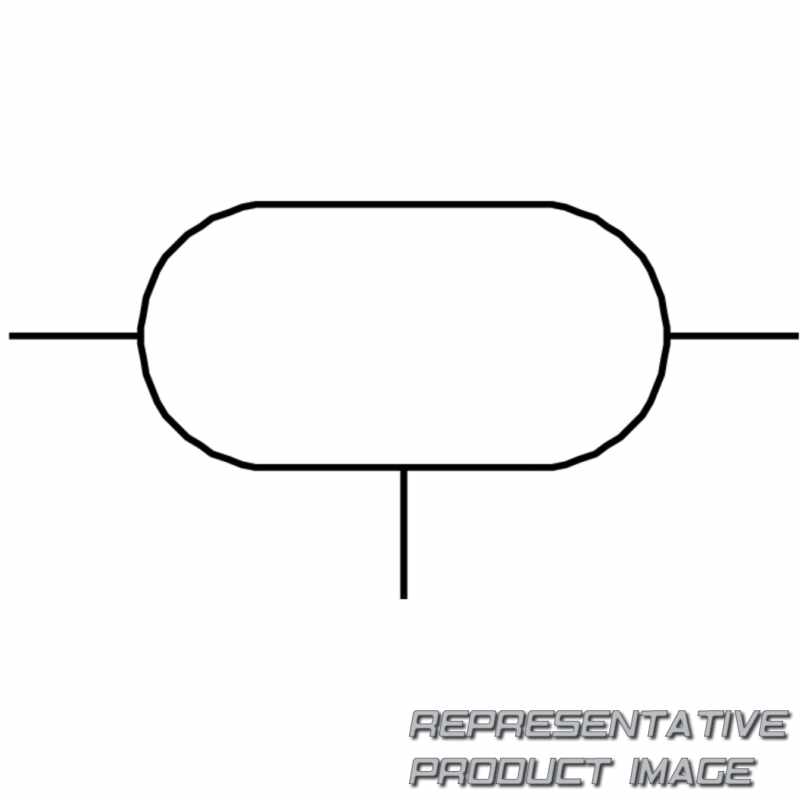

| Symbol | 00991474 | ||
| Mounting position | Condensate drain underneath |
