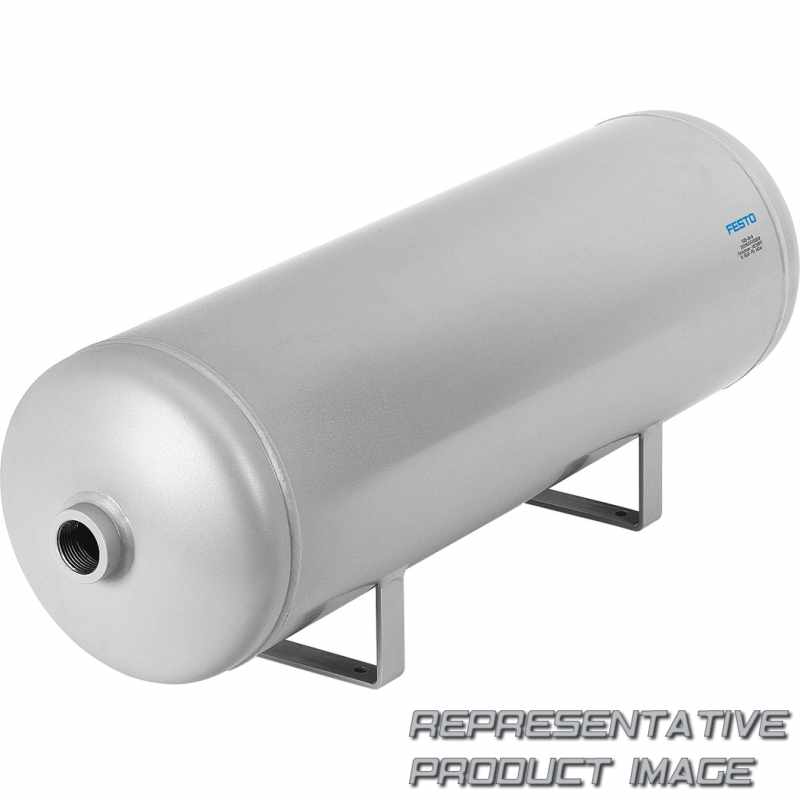

| Material air reservoir | Powder-coated steel | ||
| Condensate drain connection | G3/8 | ||
| Product weight | 9.000 g | ||
| Max. tightening torque for connecting thread | 130 Nm | ||
| Media temperature | -10 °C ... 100 °C | ||
| Operating medium | Compressed air to ISO 8573-1:2010 [-:-:-] Nitrogen | ||
| Operating pressure | -13,775 psi ... 232 psi | ||
| Conforms to standard | EN 286-1 | ||
| Volume | 20 l |
| Pneumatic connection | G1 | ||
| Type of mounting | With through-hole | ||
| Max. tightening torque for condensate drain | 27 Nm | ||
| Ambient temperature | -10 °C ... 100 °C | ||
| Corrosion resistance class CRC | 4 - Very high corrosion stress | ||
| CE mark (see declaration of conformity) | In accordance with EU Directive on Simple Pressure Vessels | ||
| Symbol | 00991474 | ||
| Mounting position | Condensate drain underneath |
