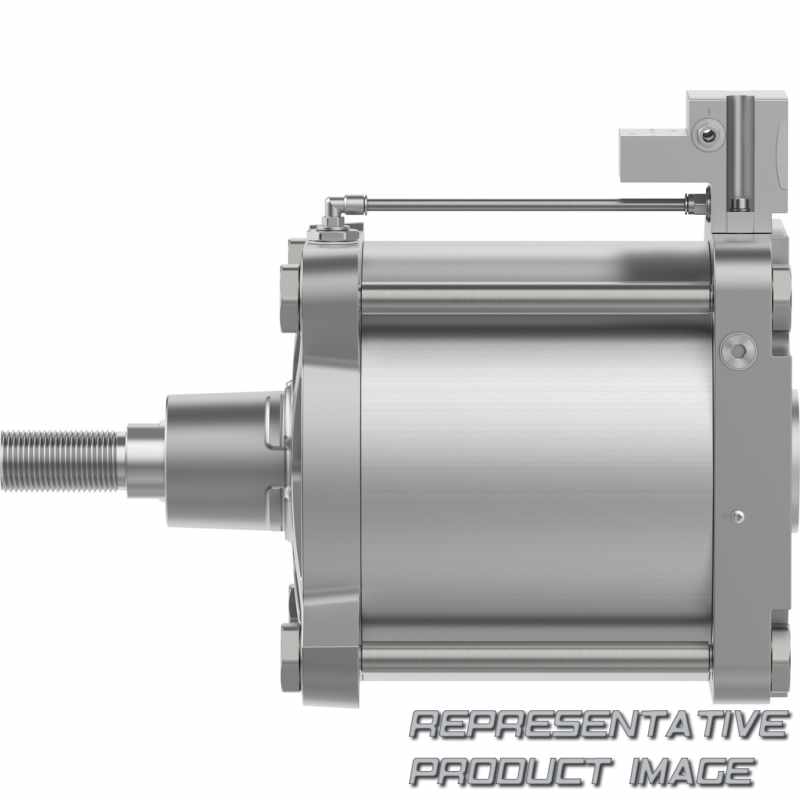

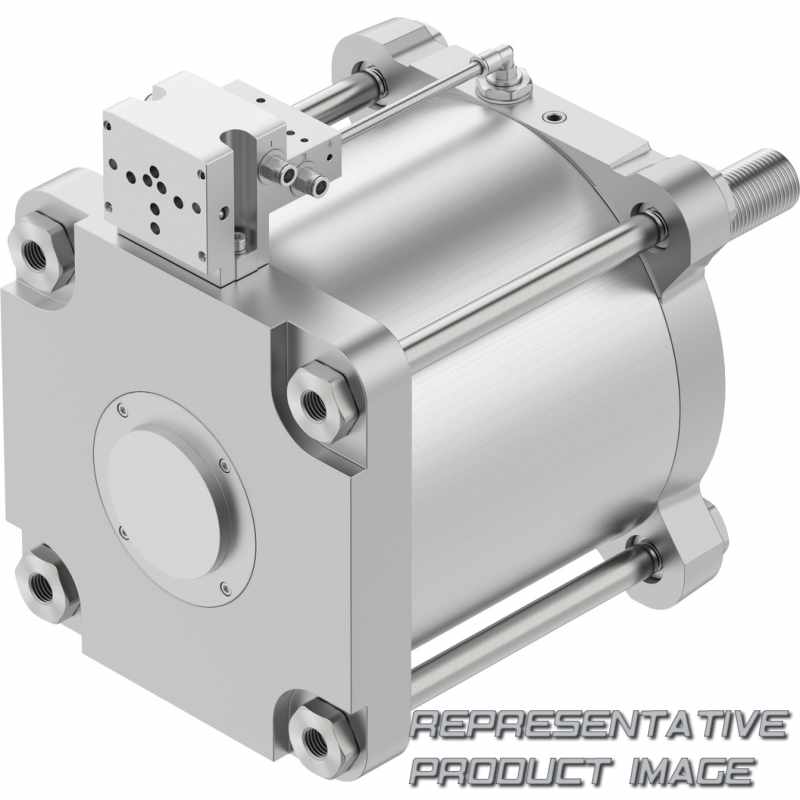

| Material cylinder barrel | Smooth-anodised wrought aluminium alloy | ||
| Material fitting | Nickel-plated brass High-alloy stainless steel | ||
| Material screws | Coated steel High-alloy stainless steel | ||
| pipe material | High-alloy stainless steel | ||
| Material piston rod | High-alloy stainless steel | ||
| Material underneath cover | Die-cast aluminium, coated | ||
| Note on materials | Contains paint-wetting impairment substances RoHS-compliant | ||
| Electrical connection | 2-pin 3-pin 4-pin 5-pin A-coded Cable connector M16x1.5 M12x1 Straight plug connector/screw terminal Straight plug With specific accessories | ||
| Repetition accuracy in ± %FS | 1 %FS | ||
| Hysteresis | 0,4 mm | ||
| Basic weight for 0 mm stroke | 12.800 g ... 14.500 g | ||
| Moving mass for 0 mm stroke | 3.700 g | ||
| Air consumption on return stroke per 10 mm | 1,351 l | ||
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | 11.581 N | ||
| Ambient temperature | -20 °C ... 80 °C | ||
| Degree of protection | IP65 IP67 IP69K NEMA 4 | ||
| Storage temperature | -20 °C ... 80 °C | ||
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) | ||
| Explosion ambient temperature | -20°C <= Ta <= +60°C | ||
| Explosion ignition protection type for gas | Ex h IIC T4 Gb | ||
| ATEX category gas | II 2G | ||
| CE marking (see declaration of conformity) | To UK instructions for EMC To UK EX instructions To UK RoHS instructions | ||
| KC mark | KC-EMV | ||
| Power supply | 2-wire | ||
| Recommended wiper current | < 0,1 µA | ||
| Analogue output | 4 - 20 mA | ||
| Operating pressure | 43,5 psi ... 116 psi | ||
| Functional principle of measuring system | Potentiometer | ||
| Position detection | With integrated displacement encoder | ||
| Mode of operation | Double-acting | ||
| Cushioning | No cushioning | ||
| Piston diameter | 160 mm | ||
| Size of valve actuator | 160 |
| Material tie rod | High-alloy stainless steel | ||
| Material static seals | NBR | ||
| Material tubing | PE | ||
| Material piston rod wiper | NBR | ||
| Material electrical connection | Nickel-plated brass High-alloy stainless steel | ||
| Material end cap | Coated wrought aluminium alloy | ||
| Pneumatic connection | G3/8 G1/2 For tubing O.D. 8 mm With specific accessories | ||
| Repetition accuracy in ± mm | 0,7 mm | ||
| Non-dependent linearity | ±0.05% | ||
| Additional weight per 10 mm stroke | 200 g | ||
| Additional moving mass per 10 mm stroke | 89 g | ||
| Air consumption on advance stroke per 10 mm | 1,407 l | ||
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 12.064 N | ||
| Impact energy in end positions | 1,4 J | ||
| Vibration resistance to DIN/IEC 68 Part 2-6 | Tested to severity level 2 | ||
| Relative air humidity | 5 - 100% Condensing Non-condensing | ||
| Continuous shock resistance to DIN/IEC 68 Part 2-82 | Tested to severity level 2 | ||
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] | ||
| Explosion ignition protection type for dust | Ex h IIIC T120°C Db | ||
| ATEX category dust | II 2D | ||
| Explosion protection | Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) | ||
| CE mark (see declaration of conformity) | To EU EMC Directive To EU Explosion Protection Directive (ATEX) In accordance with EU RoHS Directive | ||
| Approval | RCM trademark | ||
| Max. wiper current, short-time | 10.000 µA | ||
| Operational voltage range DC | 9 V ... 30 V | ||
| Nominal operating pressure | 6 bar | ||
| Reverse polarity protection | yes | ||
| Symbol | 00992807 | ||
| Design | Piston Piston rod Tie rod Cylinder barrel | ||
| Mounting position | optional | ||
| Based on standard | ISO 15552 | ||
| Stroke | 40 mm ... 990 mm |
