FESTO 3634 one-way flow control valve

Name: 3634 FESTO
Brand: FESTO
SKU: 669018-en-gbp
Price: 582.28 GBP
Availability: InStock

GGO-1/4-3/8

£582.28

1 pcs. with 1 to 3 days delivery to United States

Specifications

Pneumatic connection	G1/4
Weight	400g

Material seals		NBR
Media temperature		-10 °C ... 60 °C
Operating medium		Compressed air to ISO 8573-1:2010 [7:-:-]
Mounting position		optional
Ambient temperature		-10 °C ... 60 °C
Standard nominal flow rate in blocked direction		1.150 l/min
Type of mounting		With through-hole
Type of actuation		Mechanical
Pneumatic connection, port 1		G1/4

Product weight		400 g
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)

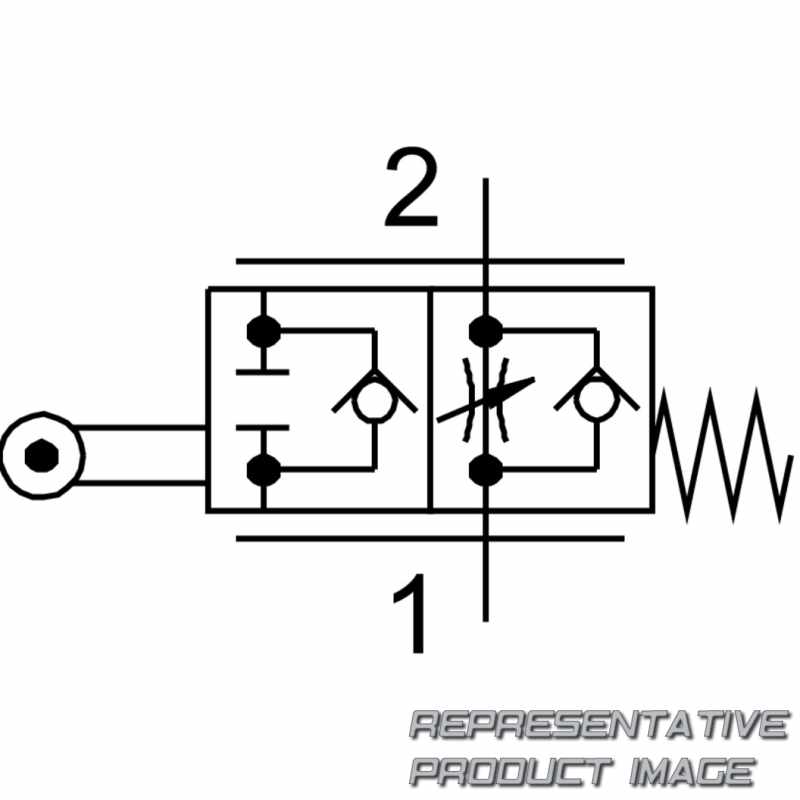

Symbol		00991466
Material housing		Wrought aluminium alloy
Operating pressure		0,43 psi ... 116 psi
Standard nominal flow rate in flow control direction		950 l/min
Adjustment component		Roller lever
Pneumatic connection, port 2		G1/4
Valve function		One-way flow control function
