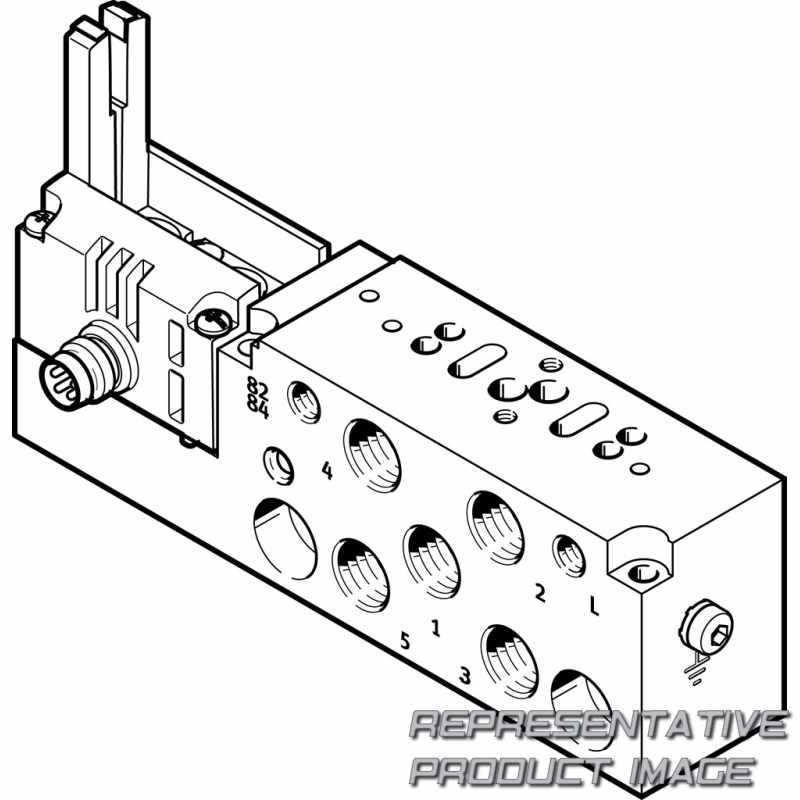

FESTO 8023669 sub-base

Name: 8023669 FESTO
Brand: FESTO
SKU: 665138-en-gbp
Price: 96.32 GBP
Availability: InStock

VMPA14-IC-AP-S-1-EX1E

£96.32

available with 7 to 15 days delivery to United States

Specifications

Operating Pressure	3 bar ... 8 bar
Pneumatic connection	M7 G1/8

Width	24,4 mm
Weight	150g

Material sub-base		Die-cast aluminium
Pneumatic connection, port 5		M7 G1/8
Pneumatic connection, port 3		M7 G1/8
Pneumatic connection, port 1		M7 G1/8
Pilot air port 12/14		M5
Electrical connection		M8 Plugs
Ambient temperature		-5 °C ... 50 °C
Corrosion resistance class CRC		0 - No corrosion stress
Explosion ignition protection type for gas		Ex ec IIC T4 Gc X
Explosion protection		Zone 2 (ATEX)
CE marking (see declaration of conformity)		To UK instructions for EMC To UK EX instructions To UK RoHS instructions
KC mark		KC-EMV
Pilot pressure		3 bar ... 8 bar
Grid dimension		14,9 mm
Width		24,4 mm

Note on materials		RoHS-compliant
Pneumatic connection, port 4		M7 G1/8
Pneumatic connection, port 2		M7 G1/8
Pilot exhaust port 82/84		M5
Mounting method for sub-base		With through-hole
Product weight		150 g
LABS (PWIS) conformity		VDMA24364-B1/B2-L
Explosion ambient temperature		-5°C <= Ta <= +50°C
ATEX category gas		II 3G
Explosion protection certification outside the EU		EPL Gc (GB)
CE mark (see declaration of conformity)		To EU EMC Directive To EU Explosion Protection Directive (ATEX) In accordance with EU RoHS Directive
Approval		c UL us - Recognized (OL)
Operating pressure		3 bar ... 8 bar
Length		107,3 mm
