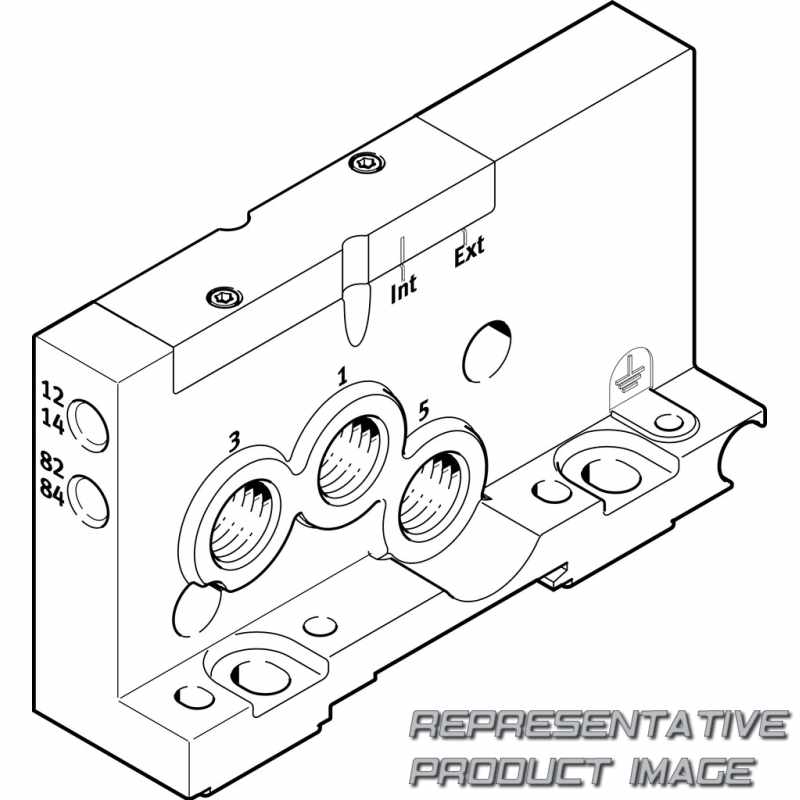

FESTO 560947 end plate

Name: 560947 FESTO
Brand: FESTO
SKU: 688018-en-gbp
Price: 13.7 GBP
Availability: InStock

VMPAL-EPR-SP

£13.70

2 pcs. with 1 to 3 days delivery to United States

Specifications

Operating Pressure	-0,9 bar ... 10 bar
Pneumatic connection	G1/4

Width	28,8 mm
Weight	180g

Material end plate		Die-cast aluminium PA-reinforced
Pneumatic connection, port 5		G1/4
Pneumatic connection, port 1		G1/4
Pilot air port 12/14		M7
Ambient temperature		-5 °C ... 50 °C
Degree of protection		IP65 IP67
Corrosion resistance class CRC		3 - high corrosion stress
Operating pressure		-0,9 bar ... 10 bar
Flow direction		Reversible
Length		107,3 mm

Note on materials		RoHS-compliant
Pneumatic connection, port 3		G1/4
Pilot exhaust port 82/84		M7
Product weight		180 g
Note on degree of protection		In assembled state
LABS (PWIS) conformity		VDMA24364-B1/B2-L
Pilot pressure		3 bar ... 8 bar
Valve terminal structure		Valve sizes can be mixed
Integrated function		Pilot air selector for defining the pilot air supply (internal or external)
Width		28,8 mm
