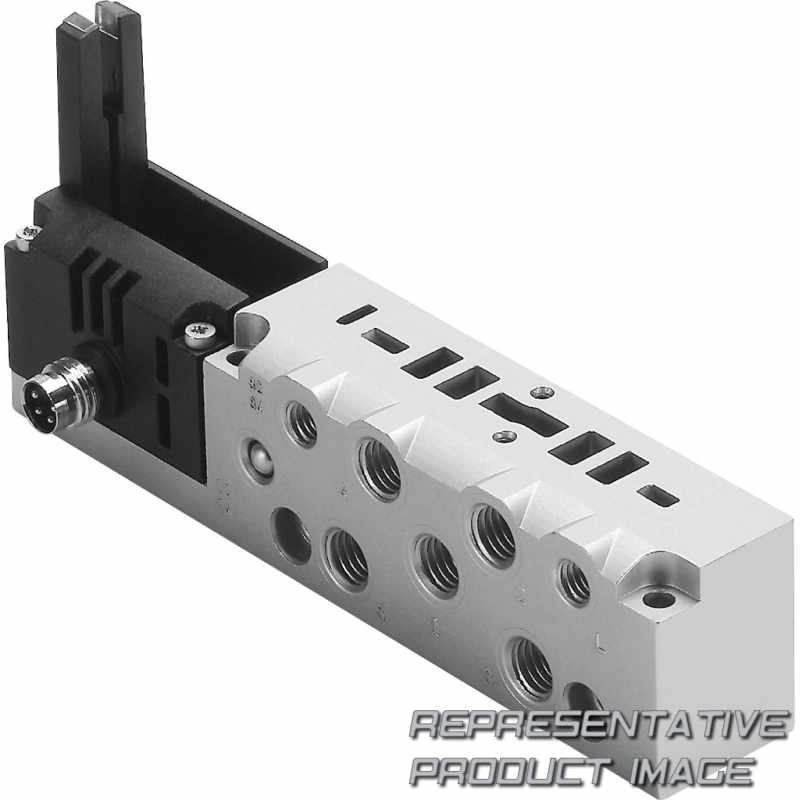

FESTO 533394 sub-base

Name: 533394 FESTO
Brand: FESTO
SKU: 687484-en-gbp
Price: 86.64 GBP
Availability: InStock

VMPA1-IC-AP-1

£86.64 2 pcs. with 1 to 3 days delivery to United States

Specifications

Operating Pressure	3 bar ... 8 bar
Pneumatic connection	M7

Width	20,2 mm
Weight	92g

Material sub-base		Die-cast aluminium
Pneumatic connection, port 5		M7
Pneumatic connection, port 3		M7
Pneumatic connection, port 1		M7
Electrical connection		M8 Plugs
Ambient temperature		-5 °C ... 50 °C
Corrosion resistance class CRC		0 - No corrosion stress
CE mark (see declaration of conformity)		To EU EMC Directive In accordance with EU RoHS Directive
Approval		c UL us - Recognized (OL)
Operating pressure		3 bar ... 8 bar
Length		107,3 mm

Note on materials		RoHS-compliant
Pneumatic connection, port 4		M7
Pneumatic connection, port 2		M7
Mounting method for sub-base		With through-hole
Product weight		92 g
LABS (PWIS) conformity		VDMA24364-B1/B2-L
CE marking (see declaration of conformity)		To UK instructions for EMC To UK RoHS instructions
KC mark		KC-EMV
Pilot pressure		3 bar ... 8 bar
Grid dimension		10,5 mm
Width		20,2 mm
