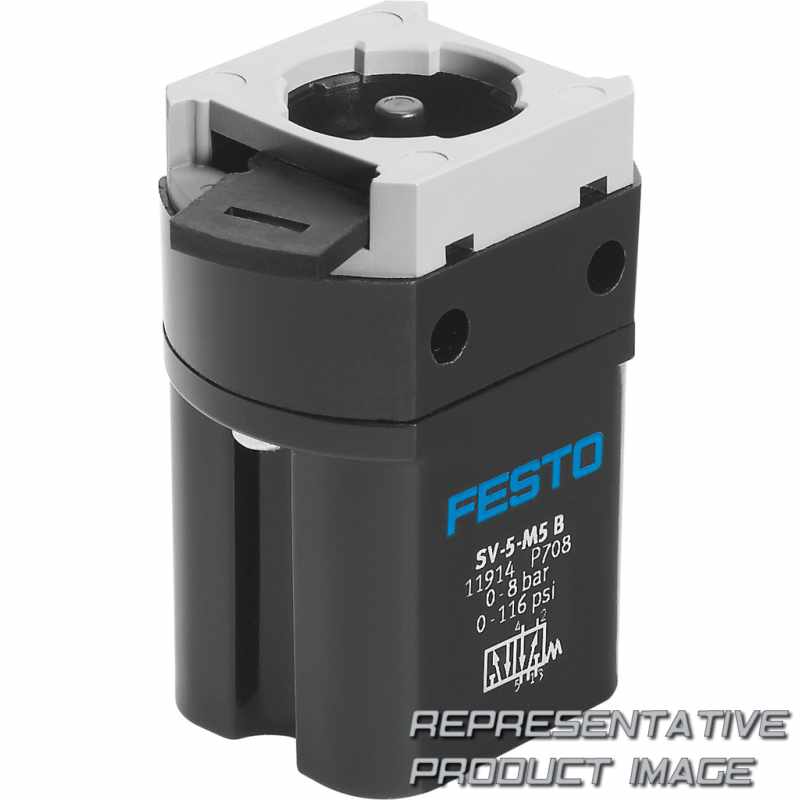

FESTO 11914 front panel valve

Name: 11914 FESTO
Brand: FESTO
SKU: 674533-en-gbp
Price: 110.05 GBP
Availability: InStock

SV-5-M5-B

£110.05

50+ pcs. with 1 to 3 days delivery to United States

Specifications

Pneumatic connection	M5
Weight	53g

Material housing		Polymer Brass
Pneumatic connection, port 1		M5
Product weight		53 g
Ambient temperature		-10 °C ... 60 °C
Explosion protection		Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)

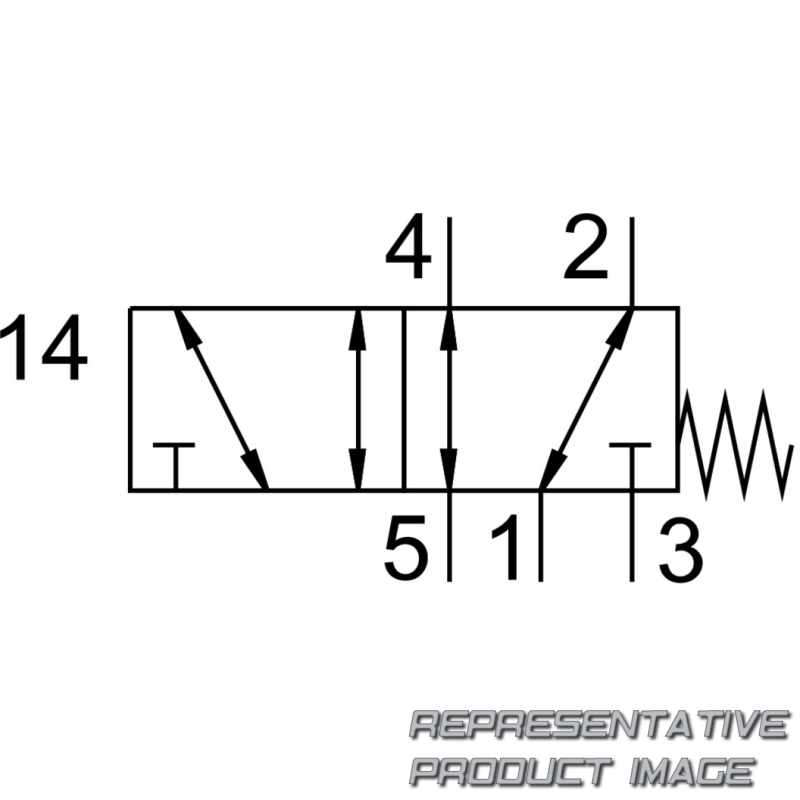

Symbol		00991339
Mounting position		optional
Nominal size		2,3 mm
Design		Poppet valve with spring return
Standard nominal flow rate		95 l/min
Valve function		5/2-way, monostable

Material seals		NBR
Type of mounting		Front panel mounting With through-hole
Actuating force		17 N
Operating medium		Compressed air to ISO 8573-1:2010 [-:-:-]
lap		Positive overlap
Type of piloting		Direct
Sealing principle		Soft
Type of reset		Mechanical spring
Operating pressure		0 bar ... 8 bar
Type of actuation		Manual
