| Note on operating and pilot medium | No acetylene No oxygen | ||
| Housing colour | Black | ||
| Material housing | PA | ||
| Material in contact with the medium | PA-reinforced | ||
| Position of connection | Centred, rear side | ||
| Ambient temperature | 0 °C ... 60 °C | ||
| Degree of protection | IP43 | ||
| Alternating load factor | 0,66 | ||
| Operating medium | Inert gases Neutral fluids | ||

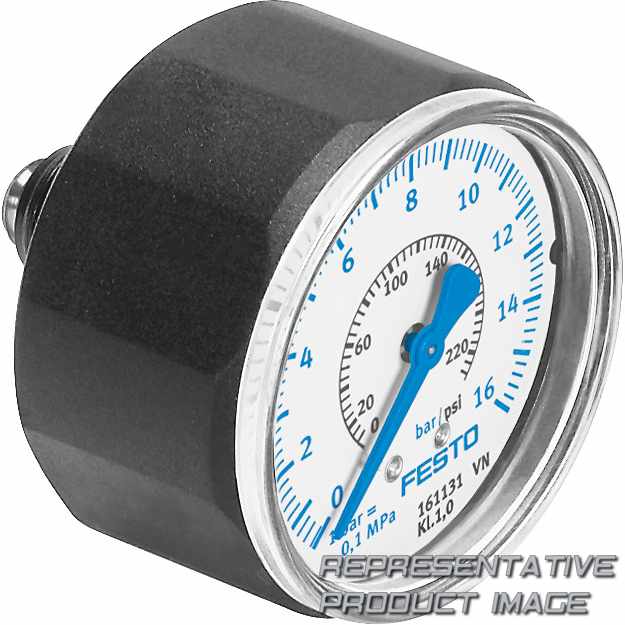

| Design | Bourdon tube pressure gauge | ||
| Nominal size of pressure gauge | 27 | ||
| Indicating range | 0 psi ... 232 psi |
| Product weight | 8 g | ||
| Material screen | PS | ||
| Material screw-in stud | PA-reinforced | ||
| Pneumatic connection | R1/8 | ||
| Note on materials | RoHS-compliant | ||
| Media temperature | 0 °C ... 60 °C | ||
| Measurement accuracy class | 4 | ||
| Operating pressure | 0 psi ... 232 psi | ||
| Type of mounting | In-line installation | ||
| Explosion protection | The information in the certificate must be observed! Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) | ||
| Symbol | 00991463 | ||
| Scale | Double scale Bar (outside scale) psi (inner scale) |
