| Note on operating and pilot medium | No acetylene No oxygen | ||
| Housing colour | Black | ||
| Material housing | Steel | ||
| Material in contact with the medium | Brass | ||
| Position of connection | Centred, rear side | ||
| Ambient temperature | -20 °C ... 60 °C | ||
| Degree of protection | IP53 | ||
| Alternating load factor | 0,66 | ||
| Operating medium | Inert gases Neutral fluids | ||

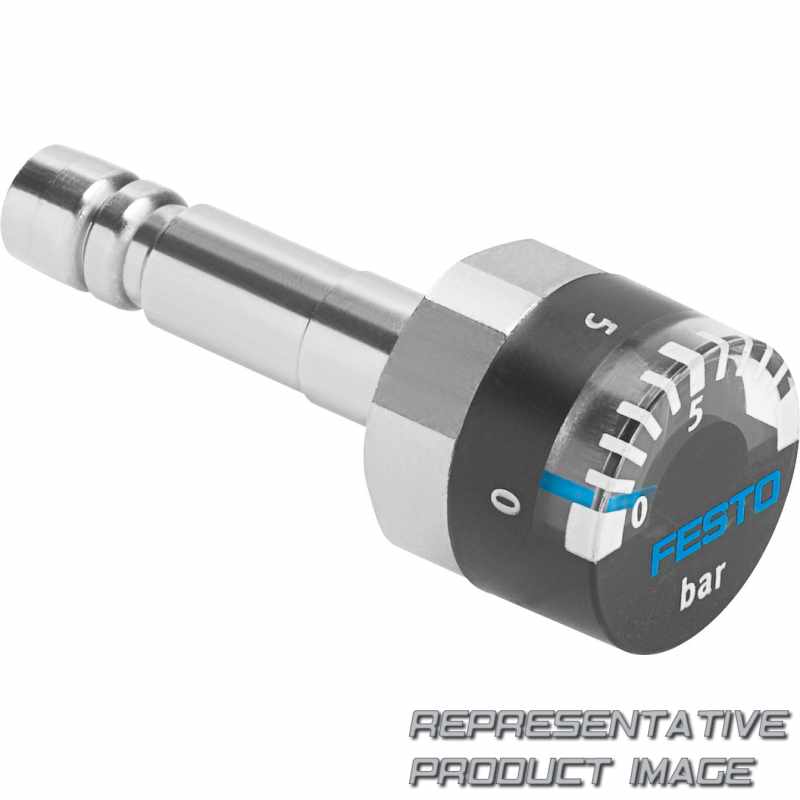

| Design | Bourdon tube pressure gauge without measuring mechanism | ||
| Symbol | 00991463 |
| Product weight | 10 g | ||
| Material screen | PC | ||
| Material screw-in stud | Brass | ||
| Pneumatic connection | QS-8 | ||
| Note on materials | RoHS-compliant | ||
| Media temperature | -20 °C ... 60 °C | ||
| Measurement accuracy class | 5 | ||
| Operating pressure | 0 psi ... 145 psi | ||
| Type of mounting | In-line installation | ||
| Nominal size of pressure gauge | 15 | ||
| Indicating range | 0 bar ... 10 bar |
