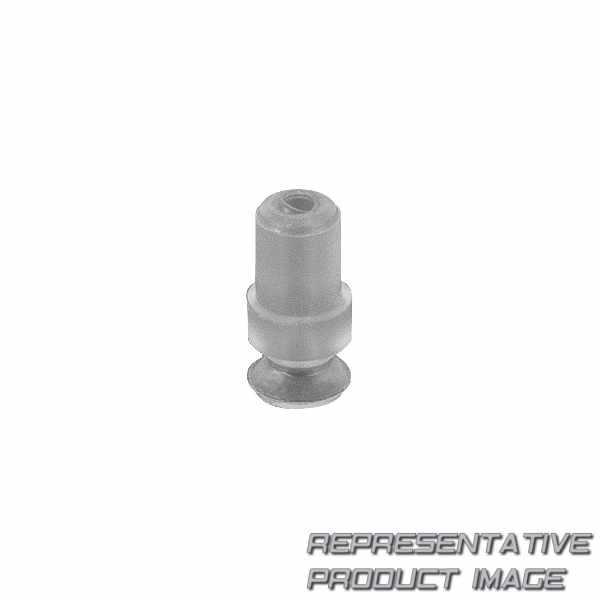

FESTO 189271 suction cup complete

Name: 189271 FESTO
Brand: FESTO
SKU: 688135-en-gbp
Price: 11.77 GBP
Availability: InStock

ESS-4-SS

£11.77

2 pcs. with 1 to 3 days delivery to United States

Specifications

Material suction cup		VMQ (silicone)
Material screw-in stud		Nickel-plated brass
Colour		Transparent
Type of mounting		Via vacuum port
Lateral force at nominal operating pressure		0,5 N
Ambient temperature		-30 °C ... 180 °C
Corrosion resistance class CRC		1 - Low corrosion stress
Nominal operating pressure		-0,7 bar
Suction cup shape		Round, flat
Symbol		00991485
Position of connection		Top
Suction cup volume		0,008 cm³
Nominal size		1,2 mm

Note on materials		Contains paint-wetting impairment substances RoHS-compliant
Shore hardness		50 +/- 5
Vacuum connection		Outside diameter 3 mm
Product weight		0,1 g
Holding force at nominal operating pressure		0,46 N
Suitable for use with food		See supplementary material information
Operating medium		Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Operating pressure		0 bar ... 0,95 bar
Correlation to suction-cup holder		Size 1
Mounting position		optional
Suitable for ejector pulse		≤ 4 bar
Suction cup diameter		4 mm
Min. workpiece radius		10 mm
