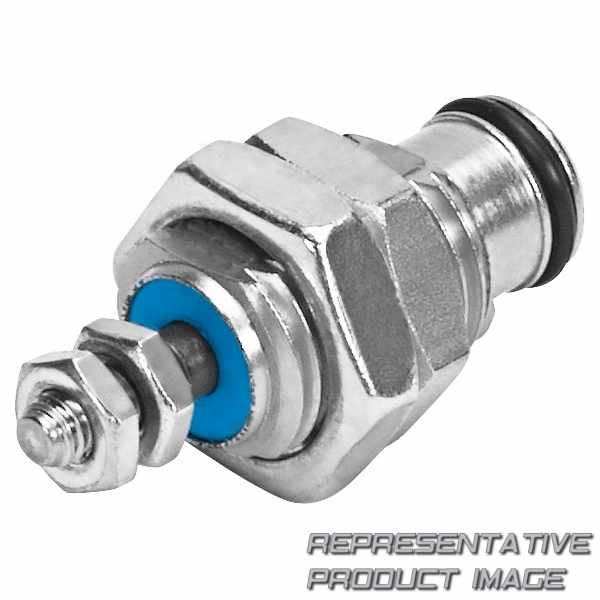

FESTO 15033 cartridge cylinder

Name: 15033 FESTO
Brand: FESTO
SKU: 671459-en-gbp
Price: 40.32 GBP
Availability: InStock

EGZ-6-5

£40.32

2 pcs. with 1 to 3 days delivery to United States

Specifications

Pneumatic connection	M3
Weight	11g

Material piston rod		High-alloy steel
Material seals		TPE-U(PU)
Pneumatic connection		M3
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke		14,7 N
Ambient temperature		-20 °C ... 80 °C
Operating medium		Compressed air to ISO 8573-1:2010 [7:-:-]
Variants		Piston rod at one end
Position detection		Without
Mode of operation		Single-acting Pushing
Cushioning		No cushioning
Stroke		5 mm

Material housing		Brass Nickel-plated
Material cover		POM
Type of mounting		Via male thread Via lock nut Either:
Theoretical force at 0.6 MPa (6 bar, 87 psi)		14 N
Corrosion resistance class CRC		2 - Moderate corrosion stress
Operating pressure		2 bar ... 8 bar
Symbol		00991200
Design		Piston Piston rod Cylinder barrel
Mounting position		optional
Piston diameter		6 mm
