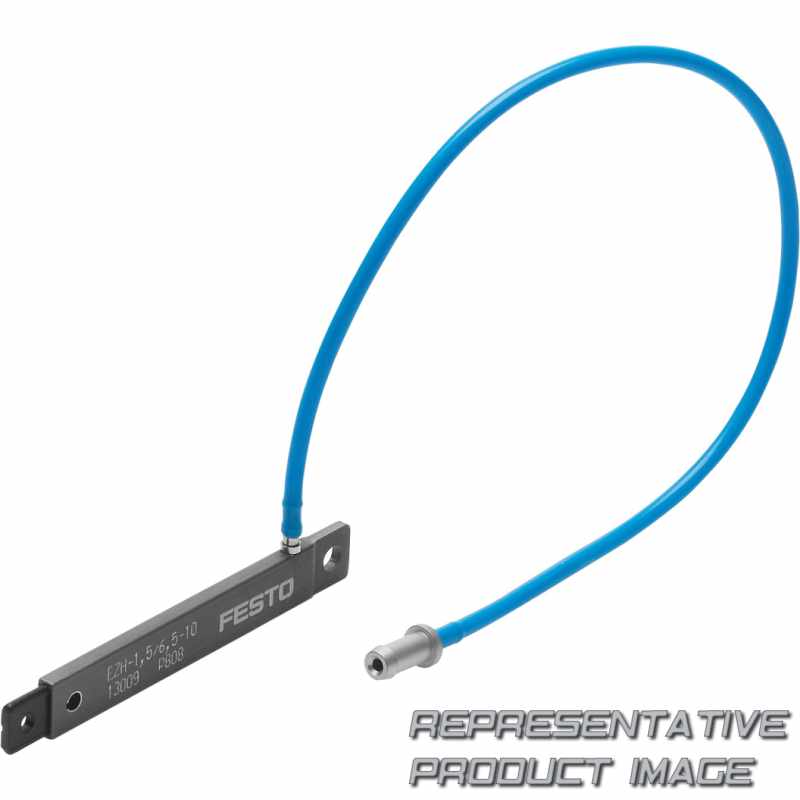

FESTO 13009 flat cylinder

Name: 13009 FESTO
Brand: FESTO
SKU: 710946-en-gbp
Price: 53.72 GBP
Availability: InStock

EZH-1,5/6,5-10

£53.72

6 pcs. with 1 to 3 days delivery to United States

Specifications

Pneumatic connection	Barbed fitting PK-3
Weight	4g

Material piston rod		PA-reinforced
Material seals		TPE-U(PU)
Note on materials		Contains paint-wetting impairment substances
Type of mounting		With transverse bore
Theoretical max. spring return force		1,7 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke		3,8 N
Corrosion resistance class CRC		2 - Moderate corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Protection against torque/guide		Rectangular piston rod
Position detection		Without
Mode of operation		Single-acting Pushing
Cushioning		No cushioning
Stroke		10 mm

Material housing		Aluminium
Material cover		Aluminium
Pneumatic connection		Barbed fitting PK-3
Product weight		4 g
Theoretical min. spring return force		1 N
Ambient temperature		0 °C ... 60 °C
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Operating pressure		3 bar ... 6 bar

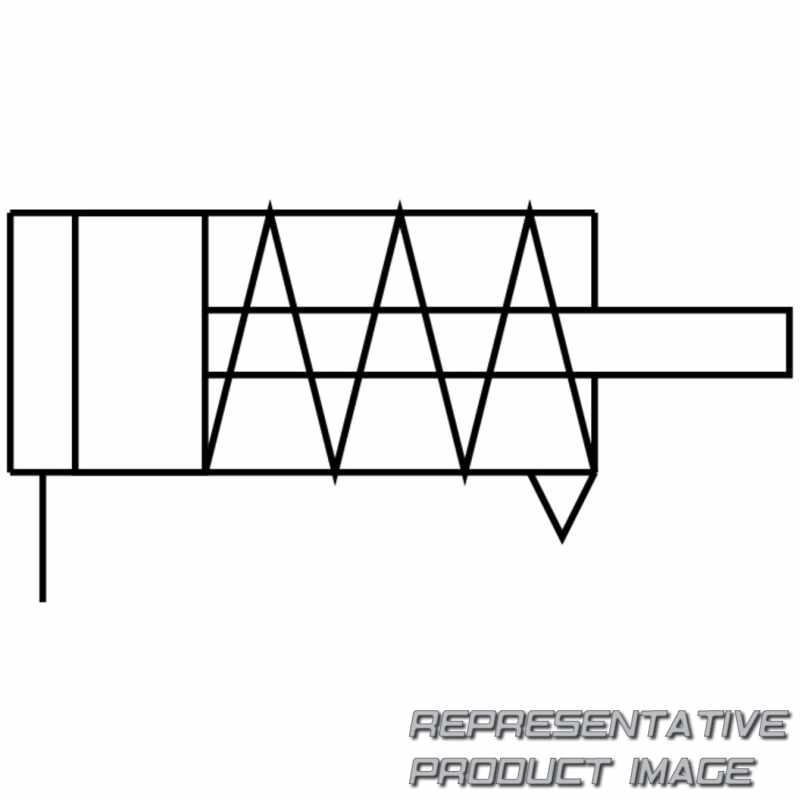

Symbol		00991200
Design		Piston Rectangular piston rod
Mounting position		optional
Piston diameter		3 mm Equivalent diameter
