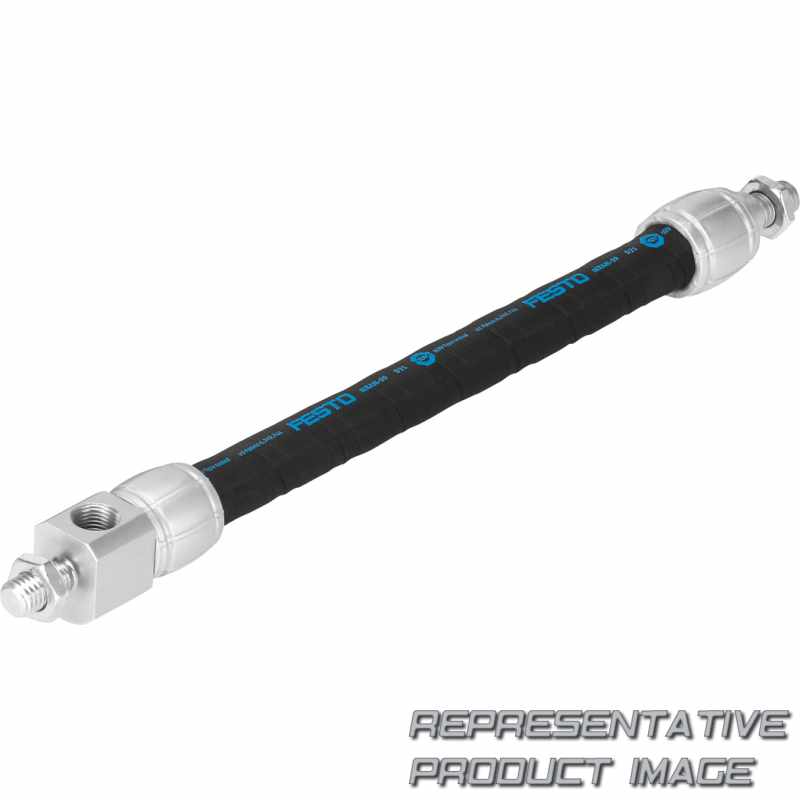

FESTO 8114536 fluidic muscle

Name: 8114536 FESTO
Brand: FESTO
SKU: 676197-en-gbp
Price: 164.99 GBP
Availability: InStock

DMSP-10-80N-RM-CM

£164.99

2 pcs. with 1 to 3 days delivery to United States

Specifications

Material nut		Steel Galvanised
Material sleeve		Wrought aluminium alloy Colourless anodised
Note on materials		Contains paint-wetting impairment substances RoHS-compliant
Theoretical force at 0.6 MPa (6 bar, 87 psi)		480 N
Max. working load freely suspended		30 kg
Corrosion resistance class CRC		2 - Moderate corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:-:-]
Mode of operation		Single-acting Pulling
Symbol		00991121
Mounting position		optional
Permissible parallelism tolerance		± 0.5% up to nominal length of 400 mm
Nominal length		80 mm
Max. contraction		25% of nominal length
Diameter increase with max. contraction		24 mm

Material membrane		AR CR
Material flange		Wrought aluminium alloy Colourless anodised
Pneumatic connection		G1/8
Theoretical Fluidic Muscle force at max. operating pressure		630 N
Ambient temperature		-5 °C ... 60 °C
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Approval		German Technical Control Board (TÜV)
Operating pressure		0 bar ... 8 bar
Design		Contracting diaphragm
Permissible angle tolerance		≤ 1 deg
Repetition accuracy muscle		<= 1% of nominal length, cyclical
Max. initial tension		3% of nominal length
Stroke		0 mm ... 2.250 mm
Size		10
