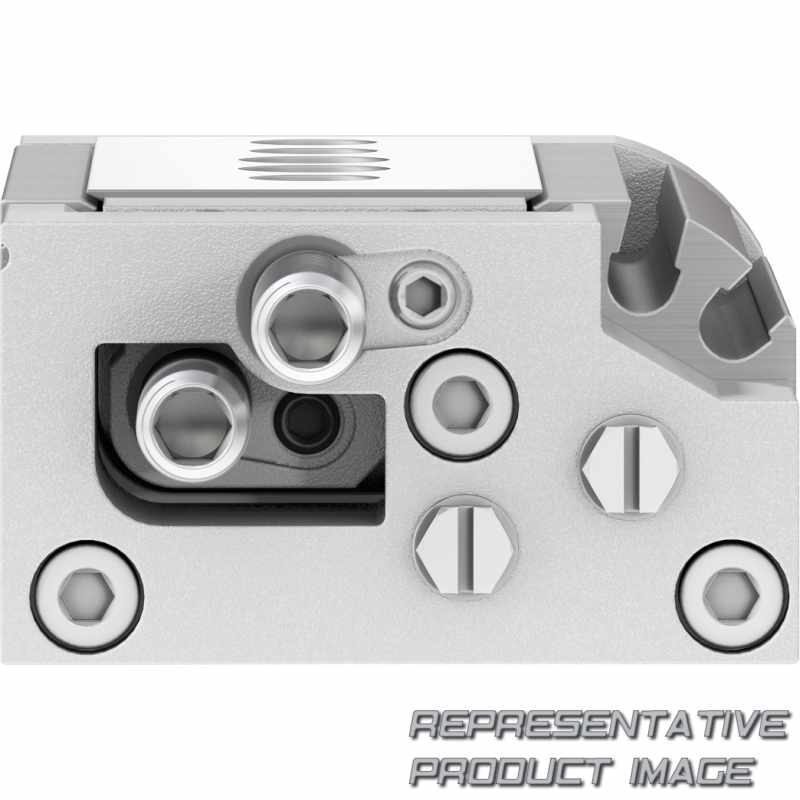

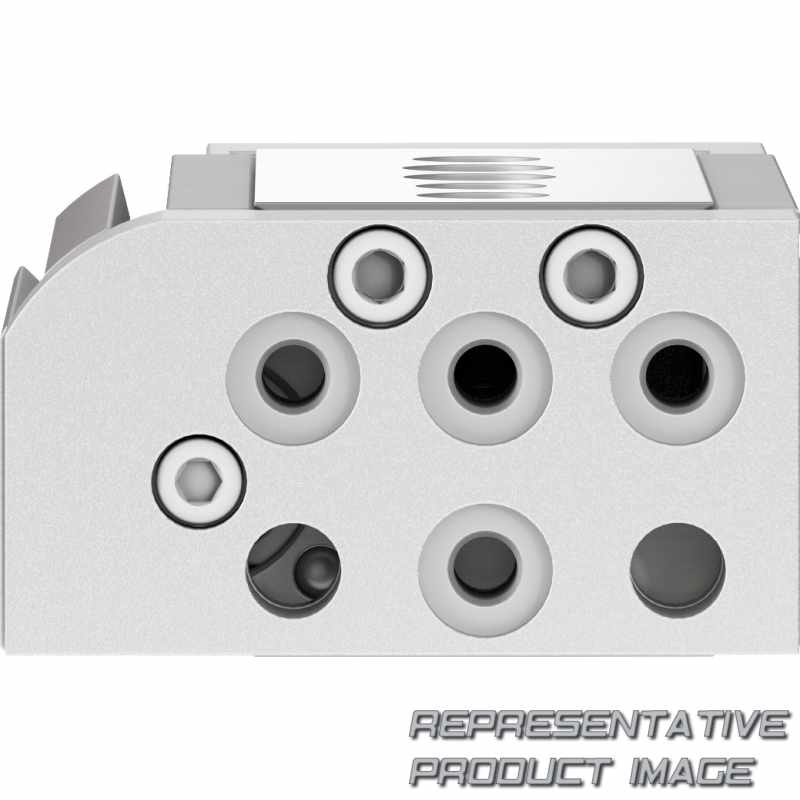

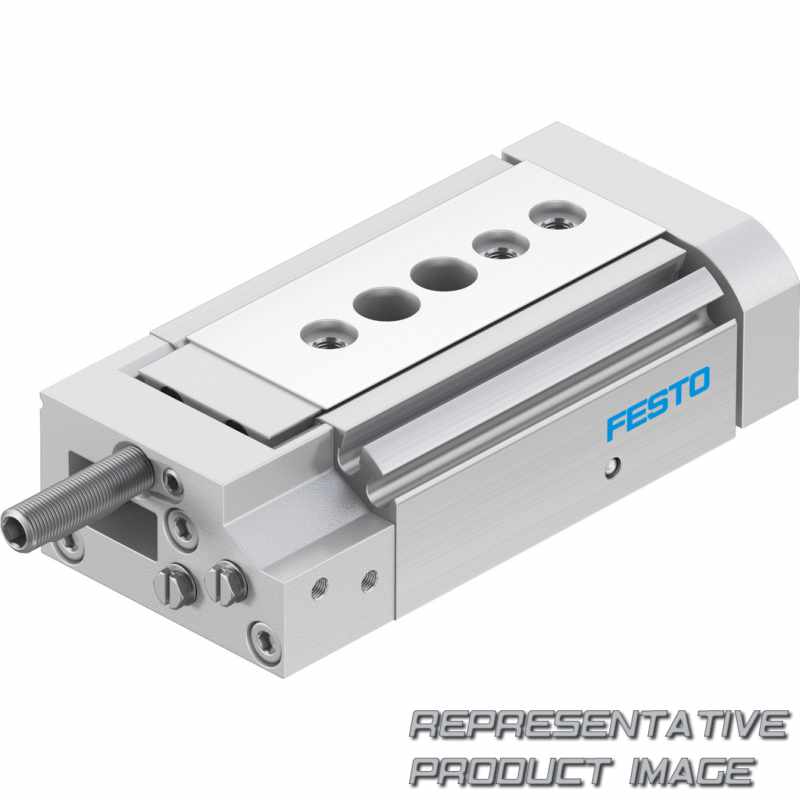

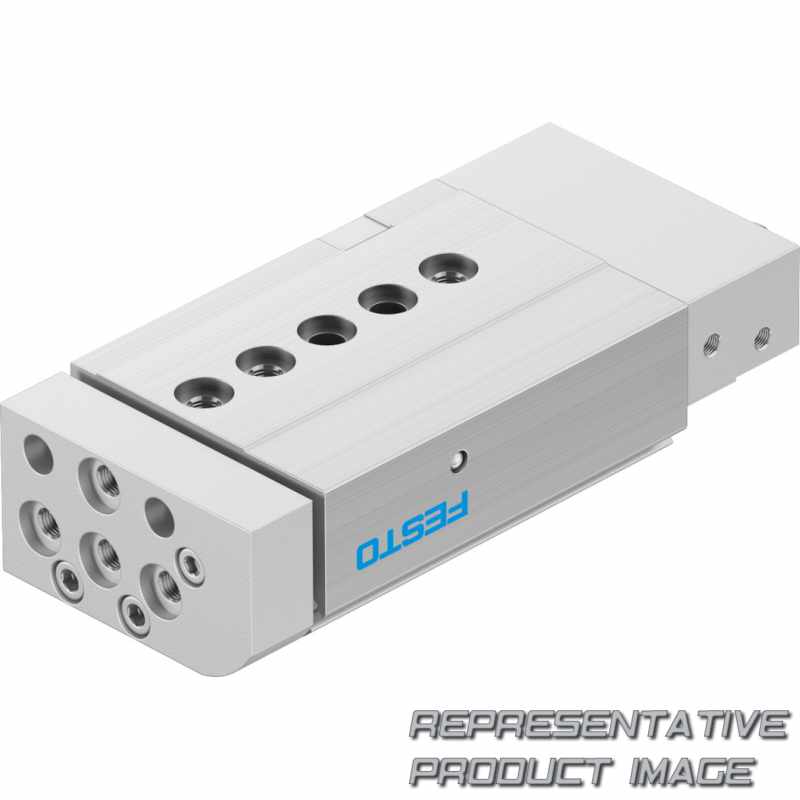

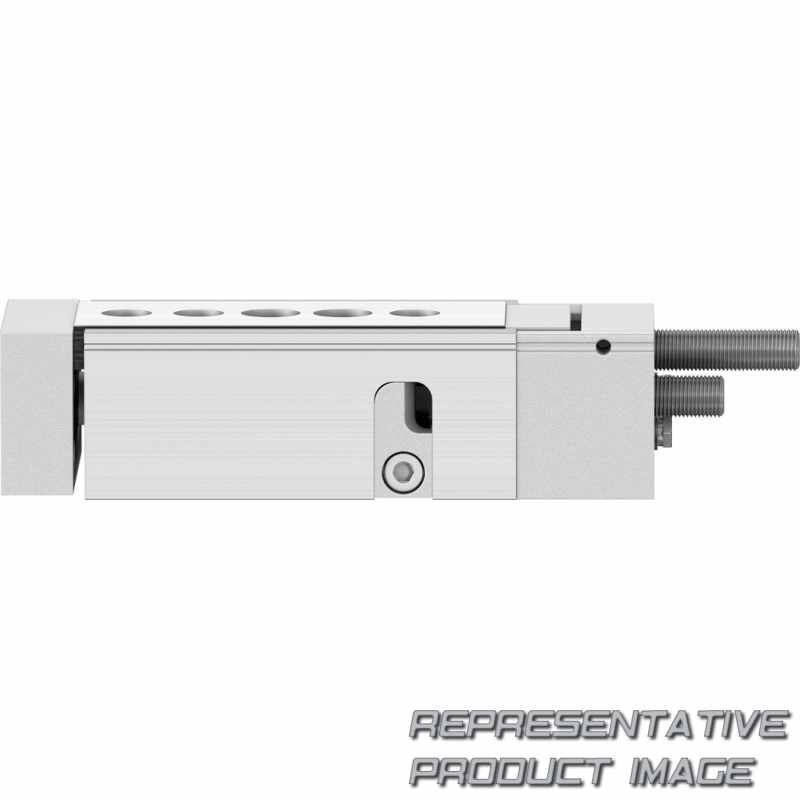

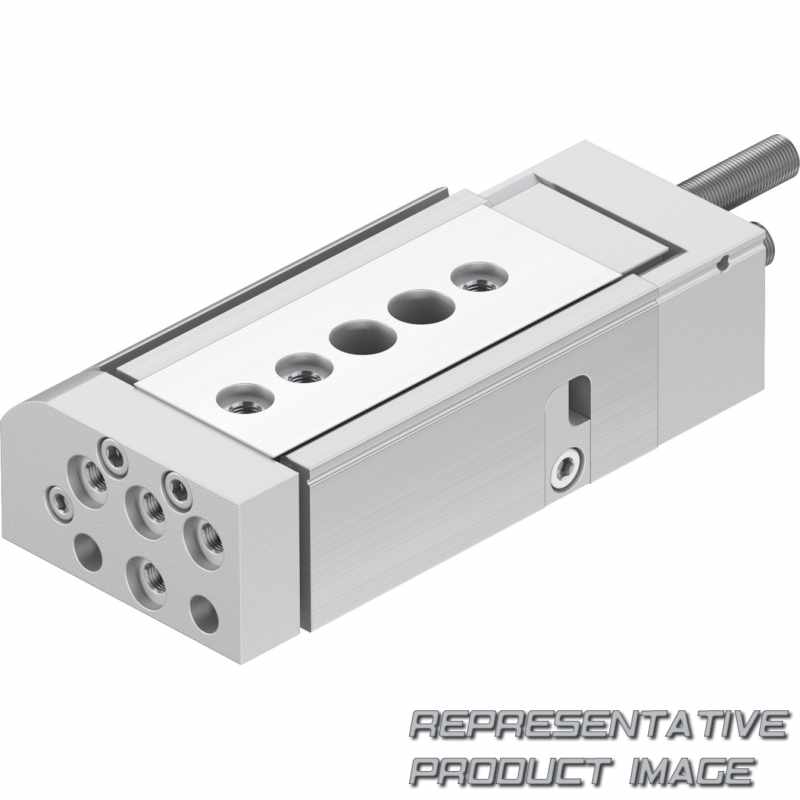

| Stroke | 10 mm ... 80 mm | ||
| Operating mode, drive unit | Yoke | ||
| Mounting position | optional | ||
| Design | Yoke Piston Piston rod Slide | ||
| Operating pressure | 1,5 bar ... 8 bar | ||
| Mode of operation | Double-acting | ||
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) | ||
| Ambient temperature | 0 °C ... 60 °C | ||
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 47 N | ||
| Type of mounting | With through-hole | ||
| Note on materials | RoHS-compliant | ||
| Material seals | HNBR | ||
| Material piston rod | High-alloy stainless steel |
| Piston diameter | 10 mm | ||
| Cushioning | Short elastic cushioning rings/pads at both ends No cushioning Elastic cushioning rings/plates at both ends Elastic cushioning rings/pads at both ends with fixed stop Progressive shock absorber at both ends | ||
| Guide | Ball bearing cage guide | ||
| Position detection | Via proximity switch | ||
| Max. speed | 0,8 m/s | ||
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] | ||
| Corrosion resistance class CRC | 0 - No corrosion stress | ||
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | 40 N | ||
| alternative connections | See product drawing | ||
| Pneumatic connection | M3 | ||
| Material cover | Wrought aluminium alloy | ||
| Material housing | Wrought aluminium alloy |
