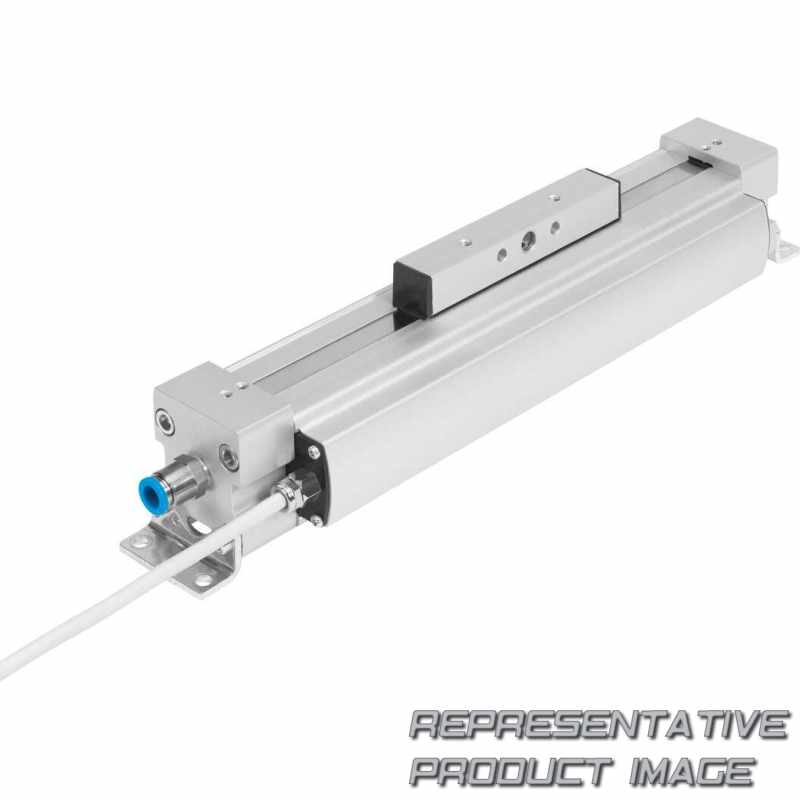

FESTO 5110119 cover module

Name: 5110119 FESTO
Brand: FESTO
SKU: 677213-en-gbp
Price: 121.59 GBP
Availability: SoldOut

DDLI-40-D2-

£121.59 ~~£205.69~~ -40%

Limited stock only available on quotation

Specifications

Stroke	100mm
Operating Pressure	29 psi ... 116 psi

Mounting Position	optional
Pneumatic connection	G1/4

Material seals		NBR TPE-U(PU)
Pneumatic connection		G1/4
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke		754 N
Ambient temperature		-10 °C ... 60 °C
Note on operating and pilot medium		Lubricated operation not possible
CE marking (see declaration of conformity)		To UK instructions for EMC To UK RoHS instructions
Approval		RCM trademark
Operating pressure		29 psi ... 116 psi
Mounting position		optional
Piston diameter		40 mm

Material cover		Wrought aluminium alloy
Type of mounting		With accessories
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke		754 N
Corrosion resistance class CRC		1 - Low corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [6:4:4]
CE mark (see declaration of conformity)		To EU EMC Directive In accordance with EU RoHS Directive
Mode of operation		Double-acting
Position detection		With integrated displacement encoder
Cushioning		Elastic cushioning rings/plates at both ends
Stroke		100 mm ... 2.000 mm
