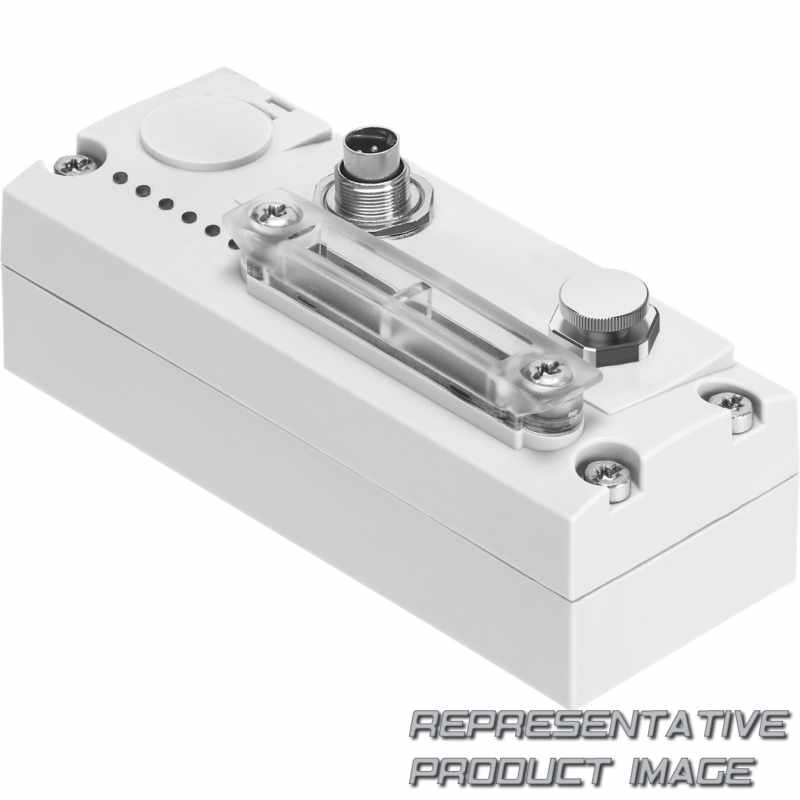

| Note on materials | Contains paint-wetting impairment substances RoHS-compliant | ||
| Ambient temperature | -5 °C ... 50 °C | ||
| Degree of protection | IP65 IP67 | ||
| CE marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | ||
| Corrosion resistance class CRC | 2 - Moderate corrosion stress | ||
| Approval | RCM trademark c UL us listed (OL) | ||
| Max. power supply | 3,4 A | ||
| Nominal operating voltage DC | 24 V | ||
| LED display, bus-specific | RUN: Communication OK | ||
| Operator controls | DIL switch | ||
| Parameterisation | Diagnostic behaviour Fail-safe response | ||
| Max. address volume, outputs | 4 Byte | ||
| Internal cycle time | 2 ms per 2 byte of user data | ||
| Fieldbus interface 2, number of pins/wires | 5 | ||
| Fieldbus interface 2, connection type | Socket | ||
| Field bus interface, transmission rate | 1000 kbit/s | ||
| Field bus, connection pattern | 5 | ||
| Field bus, connection type | Plugs | ||
| Field bus, protocol | CPI-B | ||
| Protocol | CPI-B | ||
| Type of mounting | On electrical interface On electrical sub-base | ||
| Dimensions (W x L x H) | 40 x 91 x 50 mm |
| Material housing | PA | ||
| Note on degree of protection | In assembled state Unused connections sealed | ||
| Storage temperature | -20 °C ... 70 °C | ||
| CE mark (see declaration of conformity) | To EU EMC Directive In accordance with EU RoHS Directive | ||
| KC mark | KC-EMV | ||
| Power failure bridging | 10 ms | ||
| Intern power consumption nominal operating voltage | Typ. 50 mA | ||
| Operational voltage range DC | 18 V ... 30 V | ||
| LED display, product-specific | PS: Operating voltage for electronics and load supply X1: System status of module at I-Port 1 X2: System status of module at I-Port 2 | ||
| Configuration support | None | ||
| Diagnosis | Communication fault System diagnostics Undervoltage | ||
| Max. address volume, inputs | 4 Byte | ||
| Fieldbus interface 2, connection pattern | 00995398 | ||
| Fieldbus interface 2, connection technology | M9x0.5 | ||
| Fieldbus interface 2, function | Outgoing bus connection Power supply | ||
| Fieldbus interface, connection pattern | 00992012 | ||
| Field bus, connection system | M9x0.5 | ||
| Fieldbus interface, function | Incoming bus connection Power supply | ||
| Fieldbus interface | CP installation system | ||
| Product weight | 105 g | ||
| Grid dimension | 40 mm |
