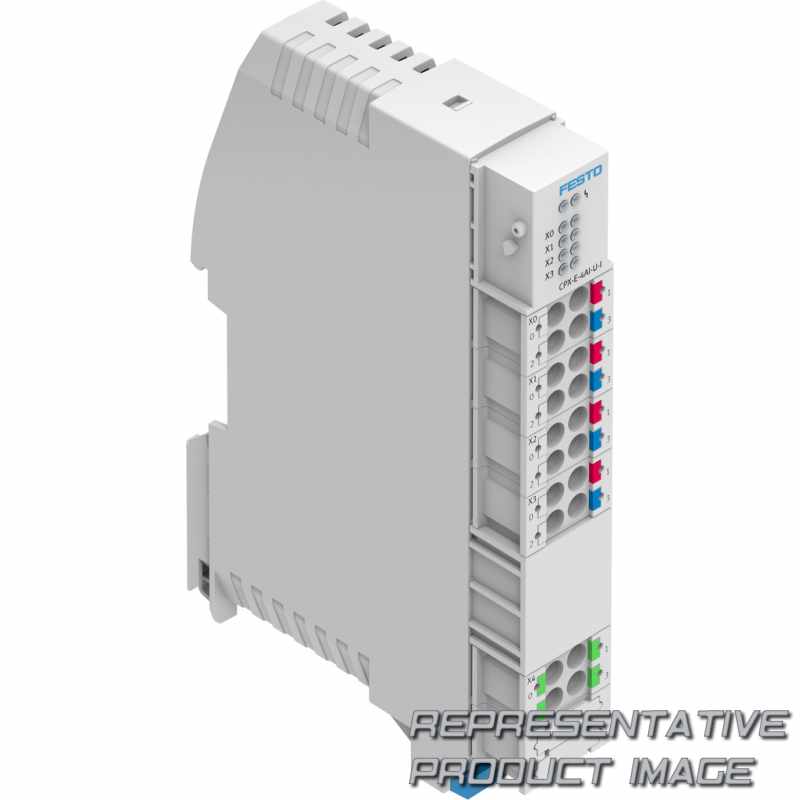

| Material housing | PA | ||
| Type of mounting | With H-rail | ||
| Electrical connection for input 2, conductor cross section | 0,2 mm² ... 1,5 mm² | ||
| Electrical connection for input 2, number of pins/wires | 4 | ||
| Electrical connection for input 2, connection type | Terminal strip | ||
| Electrical connection for input, note on conductor cross section | 0.2 - 2.5 mm² for flexible conductors without wire end sleeves | ||
| Electrical connection input, number of connections/cores | 4 | ||
| Electrical connection input, connection type | 4x terminal strip | ||
| Max. cable length | 30 m Shielded | ||
| analog input | -10 - 10 V -20 - 20 mA -5 - 5 V 0 - 10 V 0 - 20 mA 1 - 5 V 4 - 20 mA | ||
| Product weight | 96 g | ||
| Ambient temperature | -5 °C ... 50 °C | ||
| Relative air humidity | 95 % Non-condensing | ||
| Corrosion resistance class CRC | 0 - No corrosion stress | ||
| Vibration resistance | Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6 | ||
| CE mark (see declaration of conformity) | To EU EMC Directive | ||
| Approval | RCM trademark c UL us listed (OL) | ||
| Isolation channel - channel | no | ||
| Power failure bridging | 10 ms | ||
| Max. residual current of inputs per module | 1,4 A | ||
| Operating error limit related to the ambient temperature range | ±0.3% | ||
| Fuse protection (short circuit) | Internal electronic fuse per module | ||
| Channel parameters | Wire break diagnostics Parameter error diagnostics Underflow/overflow diagnostics Upper limit diagnostics Lower limit diagnostics Smoothing factor Signal range per channel Lower/upper limits | ||
| Measured variable | Voltage Current | ||
| Diagnostics via LED | Errors per channel Errors per module | ||
| Grid dimension | 18,9 mm |
| Note on materials | Contains paint-wetting impairment substances RoHS-compliant | ||
| Electrical connection for input 2, note on conductor cross section | 0.2 - 2.5 mm² for flexible conductors without wire end sleeves | ||
| Electrical connection for input 2, connection pattern | 00995842 | ||
| Electrical connection for input 2, connection technology | Spring-loaded terminal | ||
| Electrical connection for input 2, function | Functional earth | ||
| Electrical connection for input, conductor cross section | 0,2 mm² ... 1,5 mm² | ||
| Electrical connection input, connector system | Spring-loaded terminal | ||
| Electrical connection input, function | Analogue input | ||
| Data format | 15 bits + prefix Linear scaling | ||
| Max. address volume, inputs | 8 Byte | ||
| Note on ambient temperature | -5 - 60°C for vertical installation | ||
| Degree of protection | IP20 | ||
| Storage temperature | -20 °C ... 70 °C | ||
| Shock resistance | Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27 | ||
| Certificate issuing authority | UL E239998 | ||
| KC mark | KC-EMV | ||
| Permissible voltage fluctuations for electronics/sensors | ± 25% | ||
| Isolation channel - internal bus | yes | ||
| Nominal DC operating voltage, electronics/sensors | 24 V | ||
| Basic error limit at 25 °C | ±0.2% | ||
| Intrinsic current consumption at nominal operating voltage for electronics/sensors | Typically 70 mA | ||
| Repetition accuracy | ±0.1% at 25°C | ||
| Module parameters | Data format, analogue inputs Short circuit diagnostics for sensor supply Parameterisation error diagnostics Diagnostics of overload at analogue inputs Limit monitoring hysteresis Deactivate sensor supply Behaviour after overload on analogue inputs Behaviour after short circuit/overload | ||
| Diagnostics via bus | Wire break Short circuit/overload in sensor supply Parameter errors Parameterisation error Overload at analogue inputs Upper limit value violated Overflow/underflow Lower limit value not observed | ||
| Number of inputs | 4 | ||
| Dimensions (W x L x H) | 18.9 x 76.6 x 124.3 mm |
