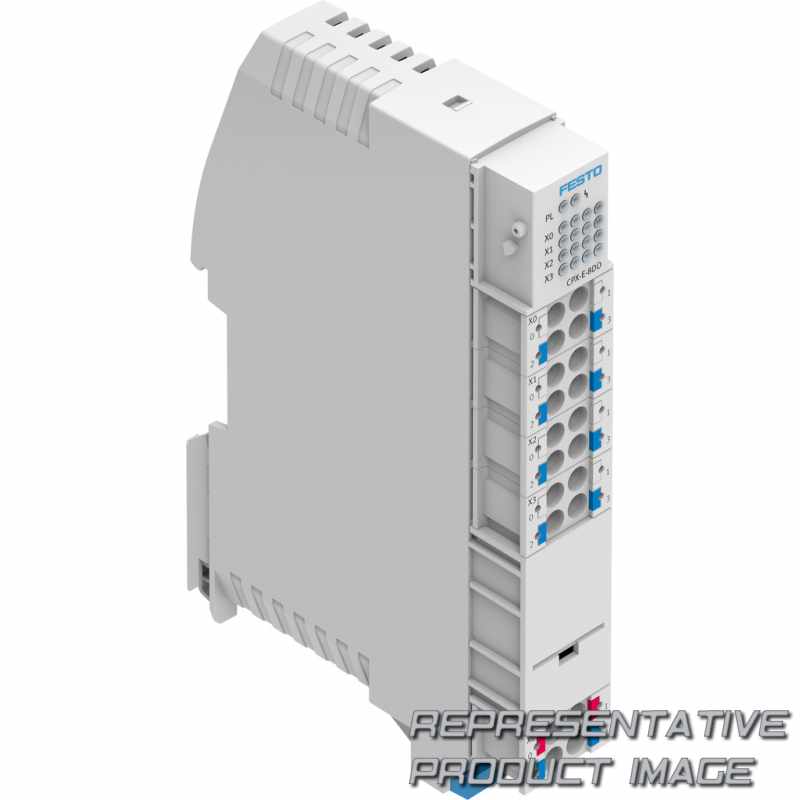

| Material housing | PA | ||
| Type of mounting | With H-rail | ||
| Electrical connection for output, conductor cross section | 0,2 mm² ... 1,5 mm² | ||
| Electrical connection output, number of connections/cores | 4 | ||
| Electrical connection output, connection type | 4x terminal strip | ||
| Switching logic for outputs | PNP (positive switching) | ||
| Max. address volume, outputs | 1 Byte | ||
| Note on ambient temperature | -5 - 60°C for vertical installation | ||
| Degree of protection | IP20 | ||
| Relative air humidity | 95 % Non-condensing | ||
| Corrosion resistance class CRC | 0 - No corrosion stress | ||
| Vibration resistance | Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6 | ||
| CE mark (see declaration of conformity) | To EU EMC Directive | ||
| Approval | RCM trademark c UL us listed (OL) | ||
| Power supply, conductor diameter | 0,2 mm² ... 1,5 mm² | ||
| Power supply, number of pins/wires | 4 | ||
| Power supply, connection type | Terminal strip | ||
| Isolation channel - channel | no | ||
| Nominal operating voltage DC of load | 24 V | ||
| Intrinsic current consumption at nominal operating voltage load | Typically 34 mA | ||
| Channel parameters | Force channel x | ||
| Diagnostics via bus | Module error Short circuit/overload at output Undervoltage in load supply | ||
| Number of outputs | 8 | ||
| Dimensions (W x L x H) | 18.9 x 76.6 x 124.3 mm |
| Note on materials | Contains paint-wetting impairment substances RoHS-compliant | ||
| Electrical connection for output, note on conductor cross section | 0.2 - 2.5 mm² for flexible conductors without wire end sleeves | ||
| Electrical connection output, connection pattern | 00995846 | ||
| Electrical connection output, connector system | Spring-loaded terminal | ||
| Electrical connection output, function | Digital output | ||
| Characteristic for outputs | According to IEC 61131-2, type 0.5 | ||
| Product weight | 93 g | ||
| Ambient temperature | -5 °C ... 50 °C | ||
| Protection against direct and indirect contact | PELV | ||
| Storage temperature | -20 °C ... 70 °C | ||
| Shock resistance | Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27 | ||
| Certificate issuing authority | UL E239998 | ||
| KC mark | KC-EMV | ||
| Power supply, note on conductor diameter | 0.2 - 2.5 mm² for flexible conductors without wire end sleeves | ||
| Power supply, connection pattern | 00995847 | ||
| power supply, connection system | Spring-loaded terminal | ||
| Permissible voltage fluctuation of load | ± 25 % | ||
| Isolation channel - internal bus | yes | ||
| Max. residual current outputs per module | 4 A | ||
| Fuse protection (short circuit) | Internal electronic fuse per channel | ||
| Module parameters | Short circuit diagnostics at output Diagnostics for undervoltage in load supply Behaviour after short circuit/overload | ||
| Diagnostics via LED | Errors per channel Errors per module Status per channel | ||
| Grid dimension | 18,9 mm |
