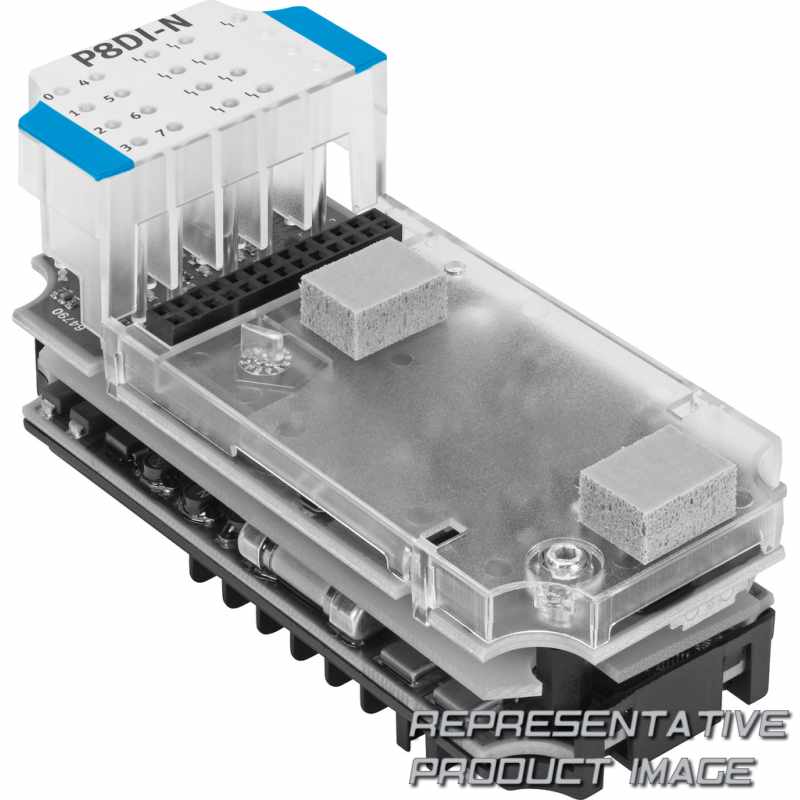

| Material housing | PA-reinforced PC | ||
| Type of mounting | On interlinking block CPX-M-GE.. | ||
| Characteristic for inputs | To EN 60947-5-6 | ||
| Ambient temperature | -5 °C ... 50 °C | ||
| Relative air humidity | 95 % Non-condensing | ||
| Explosion ambient temperature | -5°C <= Ta <= +70°C | ||
| Explosion ignition protection type for gas | [Ex ia Ga] IIC | ||
| ATEX category gas | II (1) G | ||
| Explosion protection | Zone 0 (BR) Zone 20 (BR) Zone 0 (IEC-EX) Zone 20 (IEC-EX) | ||
| CE mark (see declaration of conformity) | To EU Explosion Protection Directive (ATEX) | ||
| Switching level | To EN 60947-5-6 | ||
| Isolation channel - channel | no | ||
| Power failure bridging | 20 ms | ||
| Max. external capacitance Co | 3.000 nF | ||
| Max. output current Io | 0,017 A | ||
| Max. output power Po | 0,042 W | ||
| Fuse protection (short circuit) | Per channel | ||
| LED display | 1 Group diagnostics 8 channel diagnostics 8 Channel status | ||
| Additional functions | Frequency measurement Counter function | ||
| Diagnosis | Wire break per channel Limit value violation per channel Short circuit per channel Parameterisation error | ||
| Grid dimension | 50 mm | ||
| Parameterisation | Data format Input debounce time per channel Input function per channel Replacement value in diagnostic case per channel Signal extension time per channel Gate time per channel Monitoring limit values per channel Monitoring of short circuit per channel Parameter monitoring Counter configuration per channel Upper limit per channel Lower limit value per channel Wire break monitoring per channel |
| Note on materials | RoHS-compliant | ||
| Max. cable length | 200 m | ||
| Product weight | 100 g | ||
| Degree of protection | Dependent on the manifold block | ||
| Storage temperature | -20 °C ... 70 °C | ||
| Explosion ignition protection type for dust | [Ex ia Da] IIIC | ||
| ATEX category dust | II (1) D | ||
| Certificate issuing authority | DNV 15.0192 X IECEx ZLM 12.0007 X ZELM 12 ATEX 0500 X | ||
| Explosion protection certification outside the EU | EPL Da (BR) EPL Da (IECEx) EPL Ga (BR) EPL Ga (IEC-EX) | ||
| Permissible voltage fluctuations | +/- 25% | ||
| Residual ripple | 0.4 Vpp | ||
| Isolation channel - internal bus | yes | ||
| Nominal operating voltage DC | 24 V | ||
| Max. external inductance Lo | 125 mH | ||
| Max. output voltage Uo | 10 V | ||
| Intern power consumption nominal operating voltage | Typ. 75 mA | ||
| Input debounce time | 3 ms (0 ms, 10 ms, 20 ms, parameterisable) | ||
| Operator controls | DIL switch | ||
| Reverse polarity protection | For operating voltage | ||
| Number of inputs | 8 | ||
| Dimensions (W x L x H) | (incl. interlinking block and connection technology) 50 x 107 x 70 mm |
