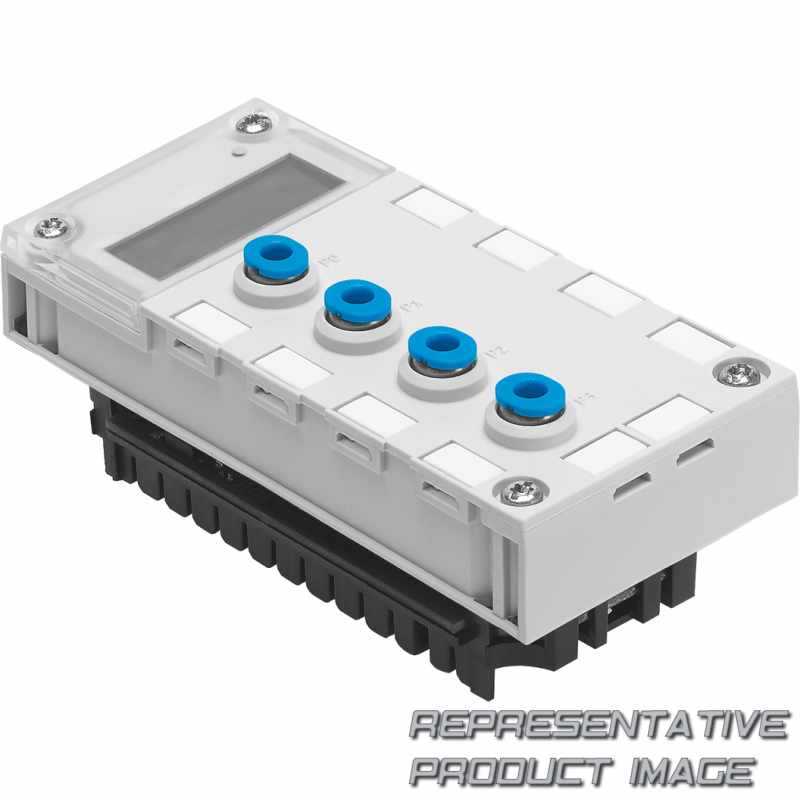

FESTO 560361 analogue module

Name: 560361 FESTO
Brand: FESTO
SKU: 686797-en-gbp
Price: 599.21 GBP
Availability: InStock

CPX-4AE-P-B2

£599.21

2 pcs. with 1 to 3 days delivery to United States

Specifications

Dimensions	(incl. interlinking block) 50 x 107 x 55 mm
Pneumatic connection	QS-4

Weight	115g

Material housing		PA-reinforced PC
Pneumatic connection		QS-4
Start value for pressure measuring range		-1 bar
Product weight		115 g
Degree of protection		IP65 IP67
Storage temperature		-20 °C ... 70 °C
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Nominal operating voltage DC		24 V
Operational voltage range DC		18 V ... 30 V
LED display		1 Group diagnostics
Measured variable		4x relative pressure/2x differential pressure
Diagnosis		Limit value violation per channel Parameterisation error Sensor limit per channel
Dimensions (W x L x H)		(incl. interlinking block) 50 x 107 x 55 mm

Note on materials		RoHS-compliant
Data format		15 bits + prefix Binary notation in mbar, kPa, psi
End value for pressure measuring range		1 bar
Ambient temperature		-5 °C ... 50 °C
Media temperature		0 °C ... 50 °C
Corrosion resistance class CRC		1 - Low corrosion stress (when installed)
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Intern power consumption nominal operating voltage		Typ. 50 mA
Internal cycle time		5 ms
Displayable units		kPa mbar psi
Parameterisation		Diagnostic delay per channel Hysteresis per module Unit of measurement Measured value smoothing per channel Diagnostics limit monitoring per channel Diagnostics: sensor limit per channel Relative/differential pressure measurement
Number of inputs		4
