FESTO 8066573 solenoid valve

Name: 8066573 FESTO
Brand: FESTO
SKU: 667076-en-gbp
Price: 356.2 GBP
Availability: SoldOut

VSVA-BT-M32CS2-MYE-A2-1T5L-PA

£356.20

Limited stock only available on quotation

Specifications

Series (VSVA)	Standards-based valve VSVA
Directional control valve type (B)	Sub-base valve
Design principle (T)	Poppet valve, soft seal
Valve function (M32C)	3/2-way valve, monostable
Additional features (S2)	Switchable pilot air not from duct 1
Reset method for monostable/single solenoid valves (M)	Mechanical spring
Pilot air	Internal

Manual override (YE)	Detenting, self-resetting via electrical control signal
Pneumatic connection (A2)	18 mm (02) ISO 15407-1/-2
Nominal operating voltage (1)	24 V DC
Electrical connection (T5)	Plug-in (electrical system in the interface, interlinked, 2x CBUS)
Position sensing	None
Display (L)	LED

Switching element function		N/C contact
Material housing		PA-reinforced
Note on materials		RoHS-compliant
Pneumatic connection, port 2		G1/8
Electrical connection		Plug-in
Ambient temperature		-5 °C ... 50 °C
Media temperature		-5 °C ... 50 °C
Shock resistance		Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Note on operating and pilot medium		Lubricated operation not possible
Permissible voltage fluctuations		+/- 10 %
Nominal operating voltage DC		24 V
Max. positive test pulse with 0 signal		2.000 µs
Switching position sensing		Via pressure switch, exhausted status
lap		Underlap
Flow direction		Non-reversible
Type of piloting		Pilot actuated
Mounting position		optional
Degree of protection		IP65
Design		Poppet seat
Standard nominal flow rate for exhaust		125 l/min
Construction width		18 mm
Valve function		3/2-way, closed, monostable

Material screws		Galvanised steel
Material seals		HNBR NBR
Pneumatic connection, port 4		G1/8
Type of mounting		On sub-base
Product weight		110 g
Pilot medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Corrosion resistance class CRC		0 - No corrosion stress
Vibration resistance		Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Characteristic coil data		24 V DC: 1.6 W
Max. negative test pulse with 1 signal		1.200 µs
Duty cycle		100%
Signal status display		Yellow LED, valve control Green LED, pressure switch, exhausted status

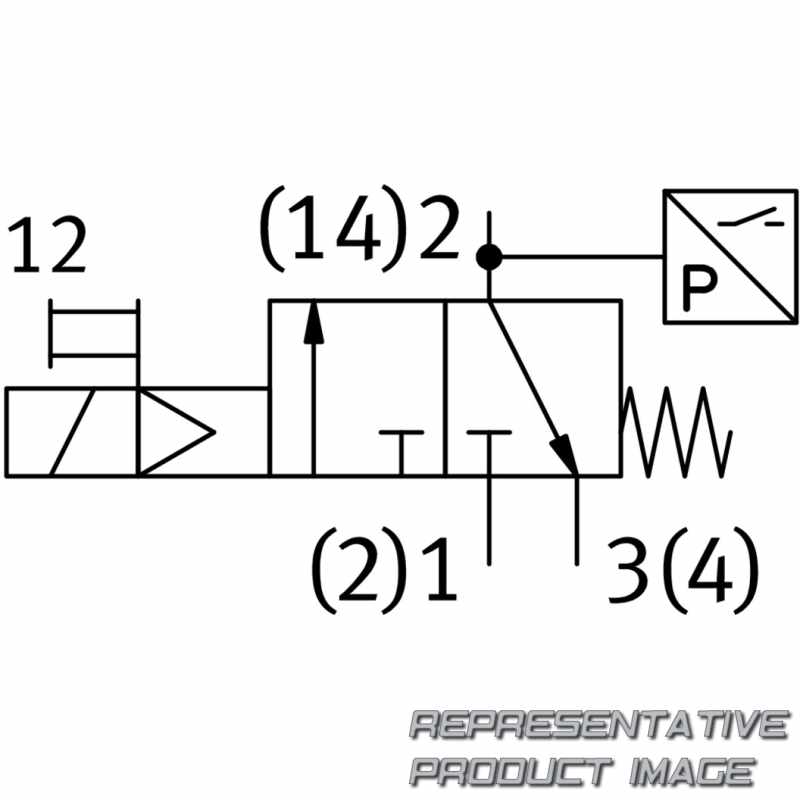

Symbol		00995775
Pilot air supply		Internal
Manual override		Detenting Self-resetting via electrical control signal
Sealing principle		Soft
Type of reset		Mechanical spring Pneumatic spring
Operating pressure		3 bar ... 10 bar
Standard nominal flow rate		125 l/min
Type of actuation		Electric
