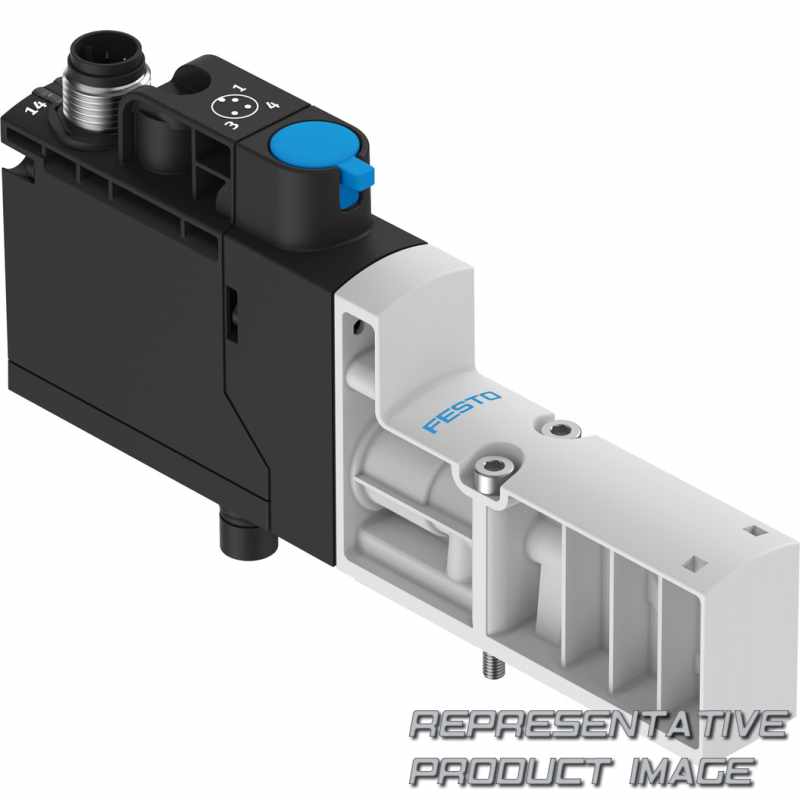

FESTO 8066575 solenoid valve

Name: 8066575 FESTO
Brand: FESTO
SKU: 661872-en-gbp
Price: 357.34 GBP
Availability: SoldOut

VSVA-BT-M32CS2-MS-A2-1T5L-PA

£357.34

Limited stock only available on quotation

Specifications

Series (VSVA)	Standards-based valve VSVA
Directional control valve type (B)	Sub-base valve
Design principle (T)	Poppet valve, soft seal
Valve function (M32C)	3/2-way valve, monostable
Additional features (S2)	Switchable pilot air not from duct 1
Reset method for monostable/single solenoid valves (M)	Mechanical spring
Pilot air	Internal

Manual override (S)	Covered
Pneumatic connection (A2)	18 mm (02) ISO 15407-1/-2
Nominal operating voltage (1)	24 V DC
Electrical connection (T5)	Plug-in (electrical system in the interface, interlinked, 2x CBUS)
Position sensing	None
Display (L)	LED

Switching element function		N/C contact
Material housing		PA-reinforced
Note on materials		RoHS-compliant
Pneumatic connection, port 2		G1/8
Electrical connection		Plug-in
Ambient temperature		-5 °C ... 50 °C
Media temperature		-5 °C ... 50 °C
Shock resistance		Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Note on operating and pilot medium		Lubricated operation not possible
Permissible voltage fluctuations		+/- 10 %
Nominal operating voltage DC		24 V
Max. positive test pulse with 0 signal		2.000 µs
Switching position sensing		Via pressure switch, exhausted status
lap		Underlap
Flow direction		Non-reversible
Type of piloting		Pilot actuated
Mounting position		optional
Degree of protection		IP65
Design		Poppet seat
Standard nominal flow rate for exhaust		125 l/min
Construction width		18 mm
Valve function		3/2-way, closed, monostable

Material screws		Galvanised steel
Material seals		HNBR NBR
Pneumatic connection, port 4		G1/8
Type of mounting		On sub-base
Product weight		110 g
Pilot medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Corrosion resistance class CRC		0 - No corrosion stress
Vibration resistance		Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Characteristic coil data		24 V DC: 1.6 W
Max. negative test pulse with 1 signal		1.200 µs
Duty cycle		100%
Signal status display		Yellow LED, valve control Green LED, pressure switch, exhausted status

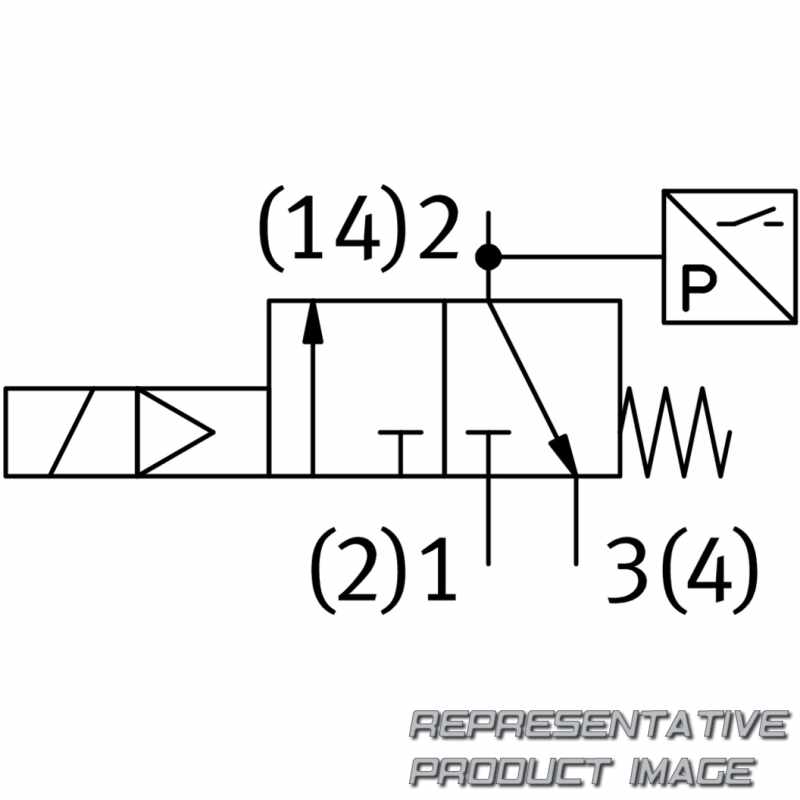

Symbol		00995777
Pilot air supply		Internal
Manual override		None
Sealing principle		Soft
Type of reset		Mechanical spring Pneumatic spring
Operating pressure		3 bar ... 10 bar
Standard nominal flow rate		125 l/min
Type of actuation		Electric
