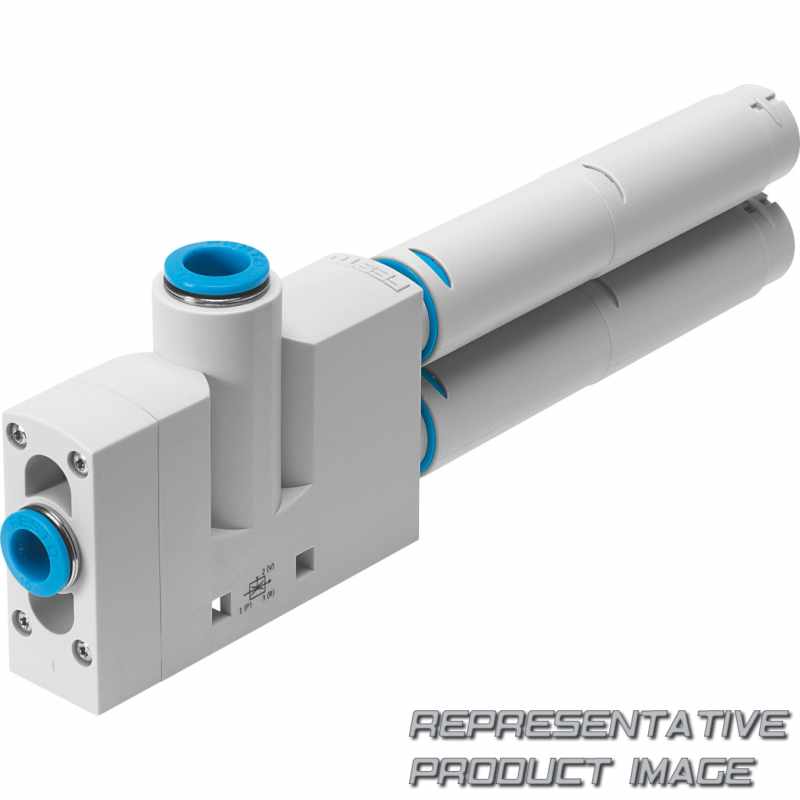

FESTO 193497 vacuum generator

VN-30-H-T6-PQ4-VQ5-RO2

£170.78
2 pcs. with 1 to 3 days delivery to United States

Specifications

Series (VN) Vacuum generator
Nominal width of Laval nozzle (30) 3.0 mm
Ejector characteristics (H) High vacuum/standard
Housing type (T6) T-shape, pitch 24 mm
Compressed air connection (PQ4) Push-in connector 10 mm
Vacuum connection (VQ5) Push-in fitting QS-12
Switching function None
Electrical output None
Exhaust port (RO2) Silencer UOM
Integrated function None
Special material properties None
Material fitting Brass Nickel-plated
Material silencer Die-cast aluminium POM PU foam
Material receiver nozzle POM
Note on materials Contains paint-wetting impairment substances RoHS-compliant
Pneumatic connection, port 3 Open silencer
Type of mounting With through-hole With accessories
Max. tightening torque 0,8 Nm
Sound pressure level at nominal operating pressure 78 dB(A)
Corrosion resistance class CRC 1 - Low corrosion stress
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Max. suction flow rate against atmosphere 186 l/min
Max. vacuum 93 %
Operating pressure 1 bar ... 8 bar
Symbol 00991489
Integrated function Open silencer
Mounting position optional
Grid dimension 24 mm
Material transmitter nozzle Wrought aluminium alloy
Material housing POM-reinforced
Material seals NBR
Vacuum connection QS-12
Pneumatic connection, port 1 QS-10
Product weight 182 g
Ambient temperature 0 °C ... 60 °C
Media temperature 0 °C ... 60 °C
Note on operating and pilot medium Lubricated operation not possible
Air supply time at nominal operating pressure 0,1 s
Nominal operating pressure 6 bar
Operating pressure for max. vacuum 3,7 bar
Operating pressure for max. suction flow rate 3 bar
Design T-shape
Ejector characteristic High vacuum Standard
Silencer design Open
Nominal size, Laval nozzle 3 mm
£170.78
Stock 2 pcs.
Part number 193497
Manufacturer FESTO
Quantity Unit Price
1+ £170.78
