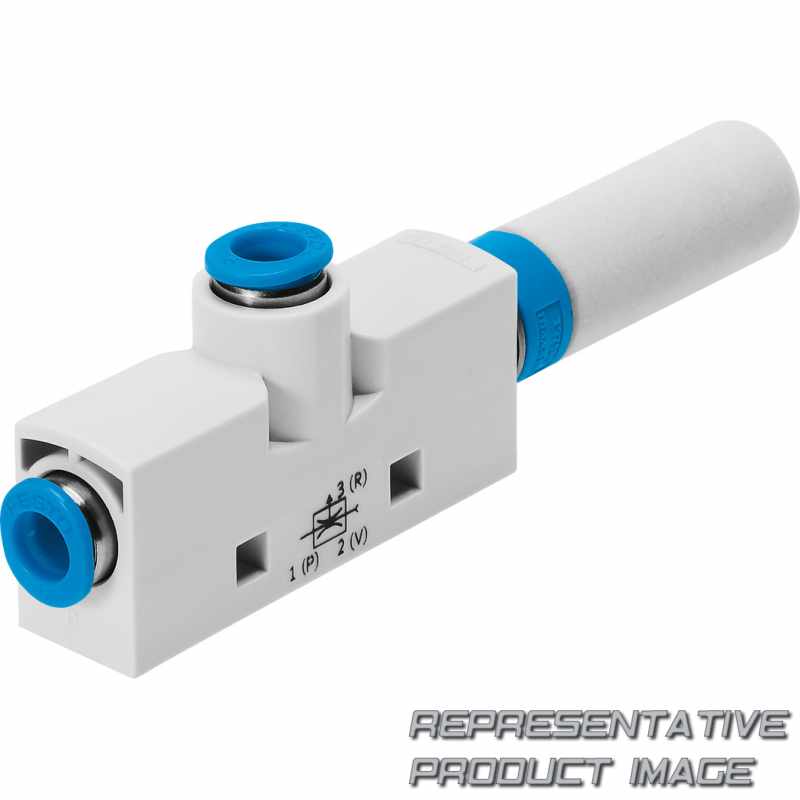

FESTO 549251 vacuum generator

Name: 549251 FESTO
Brand: FESTO
SKU: 690679-en-gbp
Price: 63.17 GBP
Availability: InStock

VN-10-H-T4-PQ2-VQ3-RO2

£63.17

2 pcs. with 1 to 3 days delivery to United States

Specifications

Series (VN)	Vacuum generator
Nominal width of Laval nozzle (10)	0.95 mm
Ejector characteristics (H)	High vacuum/standard
Housing type (T4)	T-shape, pitch 18 mm
Compressed air connection (PQ2)	Push-in connector 6 mm
Vacuum connection (VQ3)	Push-in fitting QS-8

Switching function	None
Electrical output	None
Exhaust port (RO2)	Silencer UOM
Integrated function	None
Special material properties	None

Material fitting		Brass Nickel-plated
Material silencer		Die-cast aluminium POM PU foam
Material receiver nozzle		POM
Note on materials		Contains paint-wetting impairment substances RoHS-compliant
Pneumatic connection, port 3		Open silencer
Type of mounting		With through-hole With accessories
Max. tightening torque		0,5 Nm
Sound pressure level at nominal operating pressure		71 dB(A)
Corrosion resistance class CRC		1 - Low corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Max. suction flow rate against atmosphere		25 l/min
Max. vacuum		89 %
Operating pressure		1 bar ... 8 bar
Symbol		00991489
Integrated function		Open silencer
Mounting position		optional
Grid dimension		18 mm

Material transmitter nozzle		Wrought aluminium alloy
Material housing		POM-reinforced
Material seals		NBR
Vacuum connection		QS-8
Pneumatic connection, port 1		QS-6
Product weight		36 g
Ambient temperature		0 °C ... 60 °C
Media temperature		0 °C ... 60 °C
Note on operating and pilot medium		Lubricated operation not possible
Air supply time at nominal operating pressure		1,1 s
Nominal operating pressure		6 bar
Operating pressure for max. vacuum		4,5 bar
Operating pressure for max. suction flow rate		3,1 bar
Design		T-shape
Ejector characteristic		High vacuum Standard
Silencer design		Open
Nominal size, Laval nozzle		0,95 mm
