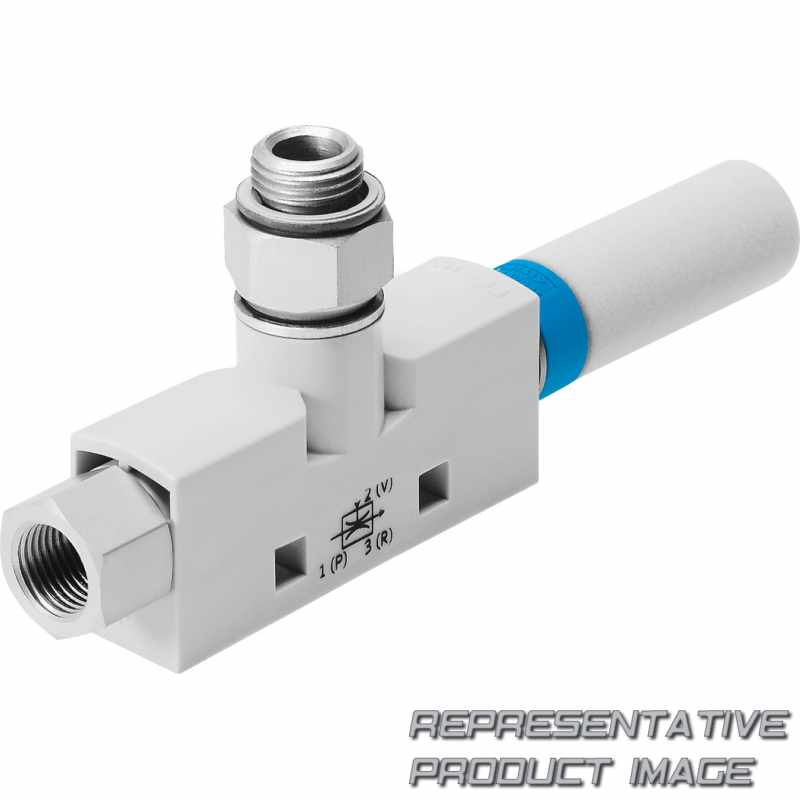

FESTO 543315 vacuum generator

Name: 543315 FESTO
Brand: FESTO
SKU: 676250-en-gbp
Price: 50.19 GBP
Availability: InStock

VN-10-L-T3-PI4-VA4-RO1

£50.19

1 pcs. with 1 to 3 days delivery to United States

Specifications

Series (VN)	Vacuum generator
Nominal width of Laval nozzle (10)	0.95 mm
Ejector characteristics (L)	High suction rate/standard
Housing type (T3)	T-shape, pitch 14 mm
Compressed air connection (PI4)	Female thread G1/8
Vacuum connection (VA4)	Male thread G1/8

Switching function	None
Electrical output	None
Exhaust port (RO1)	Silencer UO
Integrated function	None
Special material properties	None

Material transmitter nozzle		Wrought aluminium alloy
Material housing		POM-reinforced
Material seals		NBR
Material connecting thread		Wrought aluminium alloy Anodised wrought aluminium alloy Nickel-plated brass
Pneumatic connection, port 3		Open silencer
Type of mounting		With through-hole With accessories
Max. tightening torque		0,5 Nm
Sound pressure level at nominal operating pressure		73 dB(A)
Corrosion resistance class CRC		1 - Low corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Max. suction flow rate against atmosphere		62,7 l/min
Operating pressure		1 bar ... 8 bar
Symbol		00991489
Integrated function		Open silencer
Mounting position		optional
Grid dimension		14 mm

Material silencer		PE
Material receiver nozzle		POM
Note on materials		RoHS-compliant
Vacuum connection		G1/8
Pneumatic connection, port 1		G1/8
Product weight		26 g
Ambient temperature		0 °C ... 60 °C
Media temperature		0 °C ... 60 °C
Note on operating and pilot medium		Lubricated operation not possible
Air supply time at nominal operating pressure		0,46 s
Nominal operating pressure		6 bar
Operating pressure for max. suction flow rate		4 bar
Design		T-shape
Ejector characteristic		High suction rate Standard
Silencer design		Open
Nominal size, Laval nozzle		0,95 mm
