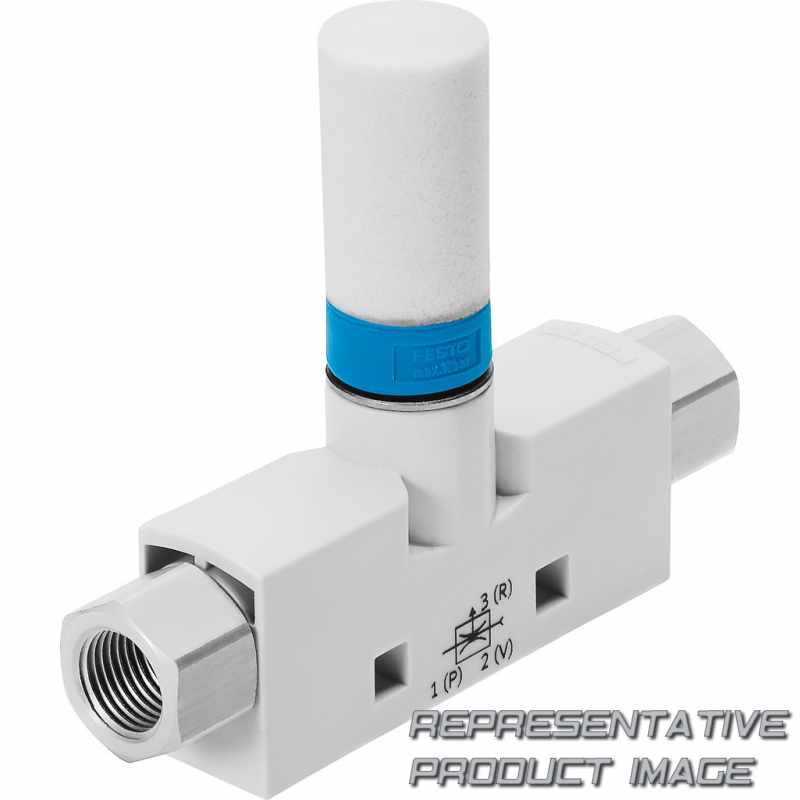

FESTO 526113 vacuum generator

Name: 526113 FESTO
Brand: FESTO
SKU: 663064-en-gbp
Price: 44.62 GBP
Availability: InStock

VN-07-M-T2-PI2-VI2-RO1

£44.62

1 pcs. with 1 to 3 days delivery to United States

Specifications

Series (VN)	Vacuum generator
Nominal width of Laval nozzle (07)	0.70 mm
Ejector characteristics (M)	High vacuum/inline
Housing type (T2)	T-shape, pitch 10 mm
Compressed air connection (PI2)	Female thread M5
Vacuum connection (VI2)	Female thread M5

Switching function	None
Electrical output	None
Exhaust port (RO1)	Silencer UO
Integrated function	None
Special material properties	None

Material transmitter nozzle		Wrought aluminium alloy
Material housing		POM-reinforced
Material seals		NBR
Material connecting thread		Anodised wrought aluminium alloy
Pneumatic connection, port 3		Open silencer
Type of mounting		With through-hole With accessories
Max. tightening torque		0,5 Nm
Sound pressure level at nominal operating pressure		59 dB(A)
Corrosion resistance class CRC		1 - Low corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Max. suction flow rate against atmosphere		13,5 l/min
Max. vacuum		86 %
Operating pressure		1 bar ... 8 bar

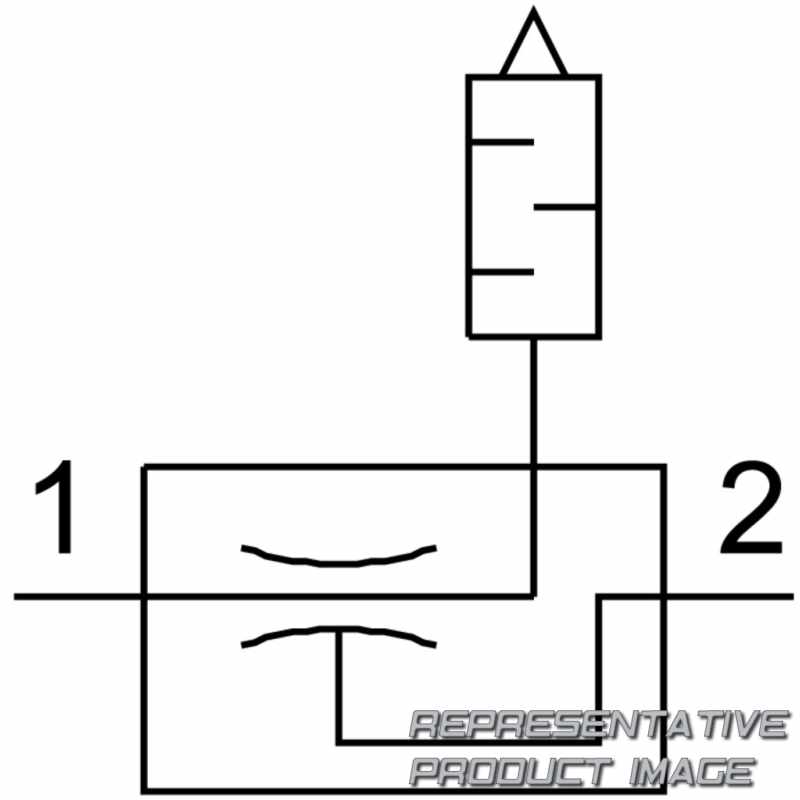

Symbol		00991488
Integrated function		Open silencer
Mounting position		optional
Grid dimension		10 mm

Material silencer		PE
Material receiver nozzle		POM
Note on materials		RoHS-compliant
Vacuum connection		M5
Pneumatic connection, port 1		M5
Product weight		13 g
Ambient temperature		0 °C ... 60 °C
Media temperature		0 °C ... 60 °C
Note on operating and pilot medium		Lubricated operation not possible
Air supply time at nominal operating pressure		2,1 s
Nominal operating pressure		6 bar
Operating pressure for max. vacuum		5,8 bar
Operating pressure for max. suction flow rate		7 bar
Design		T-shape
Ejector characteristic		High vacuum Inline
Silencer design		Open
Nominal size, Laval nozzle		0,7 mm
