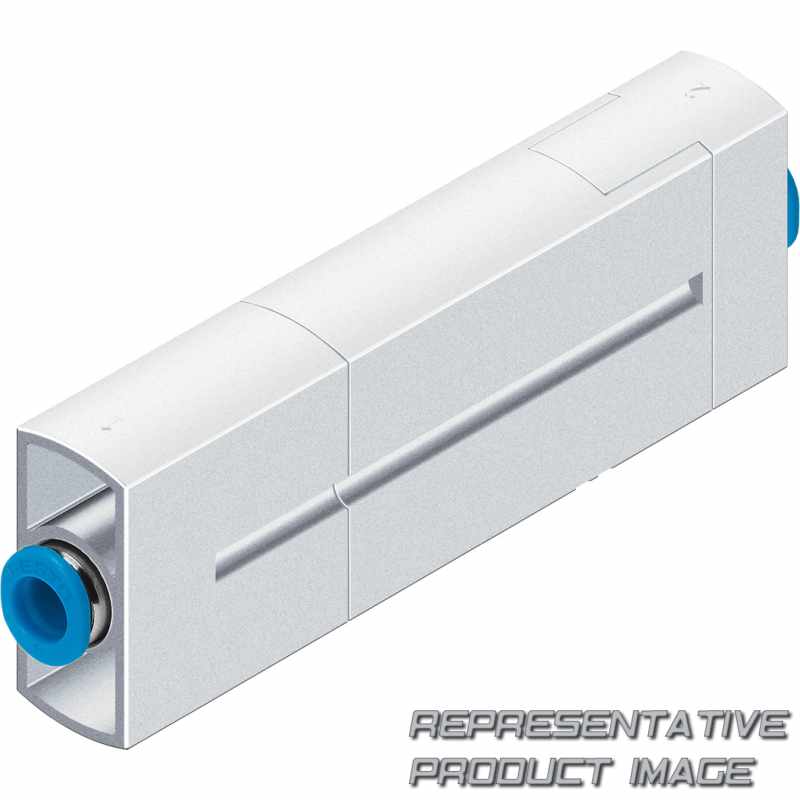

FESTO 532634 vacuum generator

Name: 532634 FESTO
Brand: FESTO
SKU: 686882-en-gbp
Price: 101.15 GBP
Availability: InStock

VN-07-M-I3-PQ2-VQ2-A

£101.15 ~~£119.75~~ -15%

2 pcs. with 1 to 3 days delivery to United States

Specifications

Series (VN)	Vacuum generator
Nominal width of Laval nozzle (07)	0.70 mm
Ejector characteristics (M)	High vacuum/inline
Housing type (I3)	Straight shape, pitch 13 mm
Compressed air connection (PQ2)	Push-in connector 6 mm
Vacuum connection (VQ2)	Push-in fitting QS-6

Switching function	None
Electrical output	None
Exhaust port	None
Integrated function (A)	Ejector pulse, pneumatic
Special material properties	None

Material fitting		Brass Nickel-plated
Material screws		Steel
Material receiver nozzle		POM
Note on materials		RoHS-compliant
Vacuum connection		QS-6
Type of mounting		In-line installation
Ambient temperature		0 °C ... 60 °C
Recommended cleaning/purification		Soapy water
Corrosion resistance class CRC		1 - Low corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Max. suction flow rate against atmosphere		16,6 l/min
Max. vacuum		93 %
Operating pressure		1 bar ... 8 bar
Symbol		00991484
Integrated function		Ejector pulse valve, pneumatic
Mounting position		optional
Nominal size, Laval nozzle		0,7 mm

Material transmitter nozzle		Wrought aluminium alloy
Material housing		PA-reinforced POM-reinforced
Material seals		NBR
Material connecting thread		Anodised wrought aluminium alloy
Pneumatic connection, port 1		QS-6
Product weight		41 g
Sound pressure level at nominal operating pressure		75 dB(A)
Media temperature		0 °C ... 60 °C
Note on operating and pilot medium		Lubricated operation not possible
Air supply time at nominal operating pressure		1,69 s
Nominal operating pressure		6 bar
Operating pressure for max. vacuum		4,3 bar
Operating pressure for max. suction flow rate		2 bar
Design		Straight shape
Ejector characteristic		Inline High negative pressure
Grid dimension		14,5 mm
