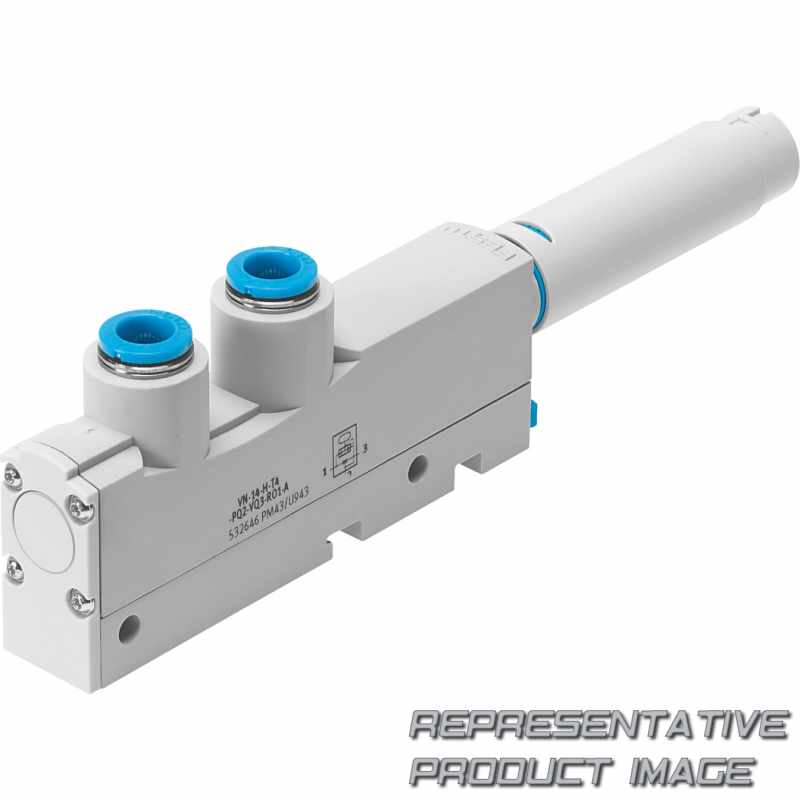

FESTO 532646 vacuum generator

Name: 532646 FESTO
Brand: FESTO
SKU: 662339-en-gbp
Price: 130.04 GBP
Availability: InStock

VN-14-H-T4-PQ3-VQ3-RO2-A

£130.04

4 pcs. with 1 to 3 days delivery to United States

Specifications

Series (VN)	Vacuum generator
Nominal width of Laval nozzle (14)	1.4 mm
Ejector characteristics (H)	High vacuum/standard
Housing type (T4)	T-shape, pitch 18 mm
Compressed air connection (PQ3)	Push-in connector 8 mm
Vacuum connection (VQ3)	Push-in fitting QS-8

Switching function	None
Electrical output	None
Exhaust port (RO2)	Silencer UOM
Integrated function (A)	Ejector pulse, pneumatic
Special material properties	None

Material fitting		Brass Nickel-plated
Material screws		Steel
Material housing		PA-reinforced POM-reinforced
Material seals		NBR
Material connecting thread		Anodised wrought aluminium alloy
Pneumatic connection, port 3		Open silencer
Type of mounting		With through-hole With H-rail With accessories
Max. tightening torque		0,5 Nm
Sound pressure level at nominal operating pressure		69 dB(A)
Media temperature		0 °C ... 60 °C
Note on operating and pilot medium		Lubricated operation not possible
Air supply time at nominal operating pressure		0,43 s
Nominal operating pressure		6 bar
Operating pressure for max. vacuum		3,5 bar
Operating pressure for max. suction flow rate		4 bar
Design		T-shape
Ejector characteristic		Standard High negative pressure
Silencer design		Open
Nominal size, Laval nozzle		1,4 mm

Material transmitter nozzle		Wrought aluminium alloy
Material silencer		Wrought aluminium alloy POM PU foam
Material receiver nozzle		POM
Note on materials		Contains paint-wetting impairment substances RoHS-compliant
Vacuum connection		QS-8
Pneumatic connection, port 1		QS-8
Product weight		85 g
Ambient temperature		0 °C ... 60 °C
Recommended cleaning/purification		Soapy water
Corrosion resistance class CRC		1 - Low corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Max. suction flow rate against atmosphere		48,8 l/min
Max. vacuum		92 %
Operating pressure		1 bar ... 8 bar
Symbol		00992043
Integrated function		Ejector pulse valve, pneumatic Open silencer
Mounting position		optional
Grid dimension		18 mm
