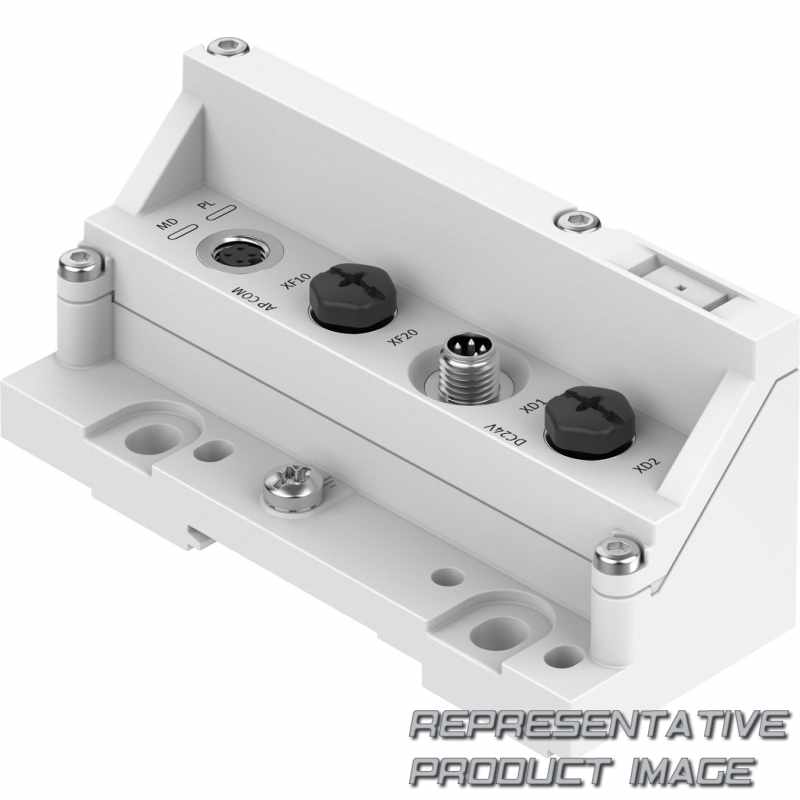

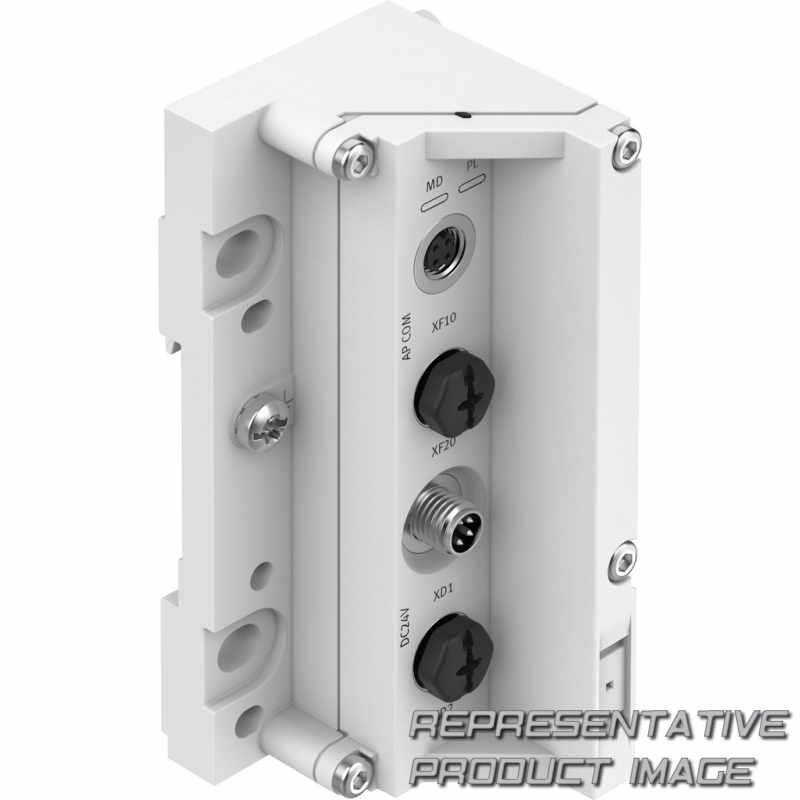

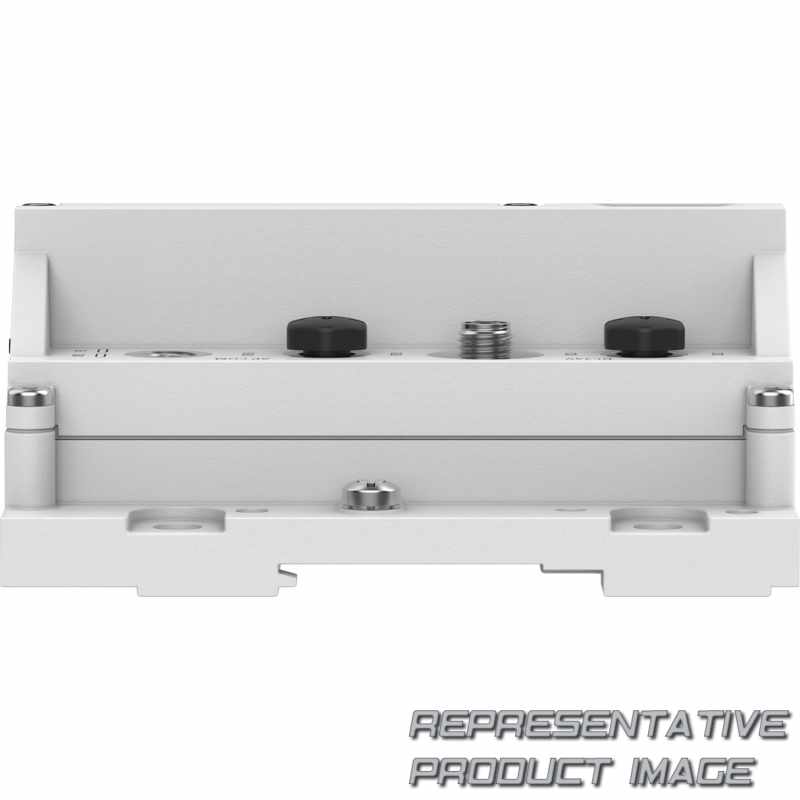

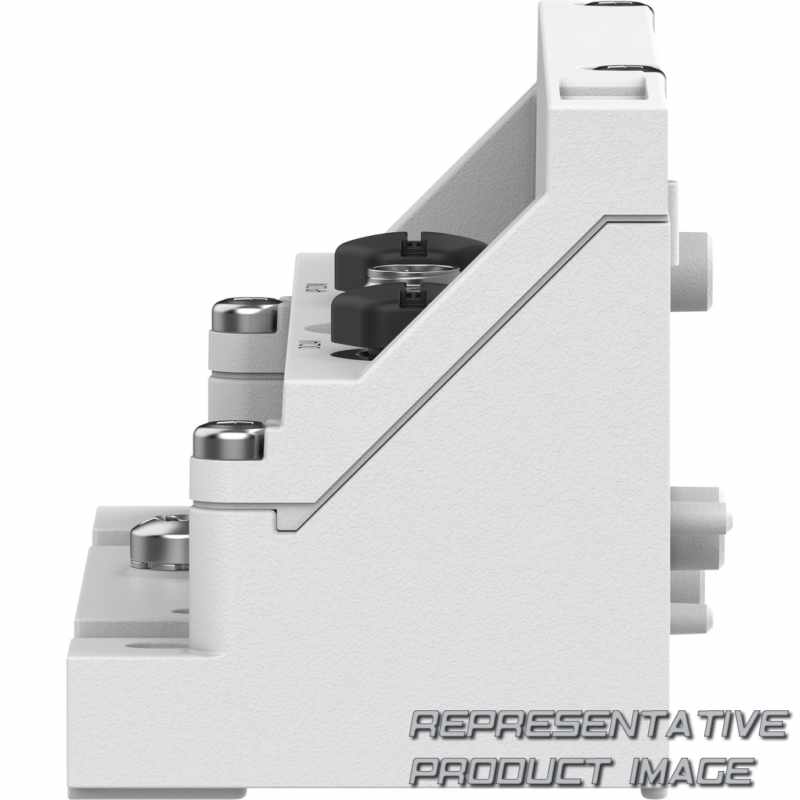

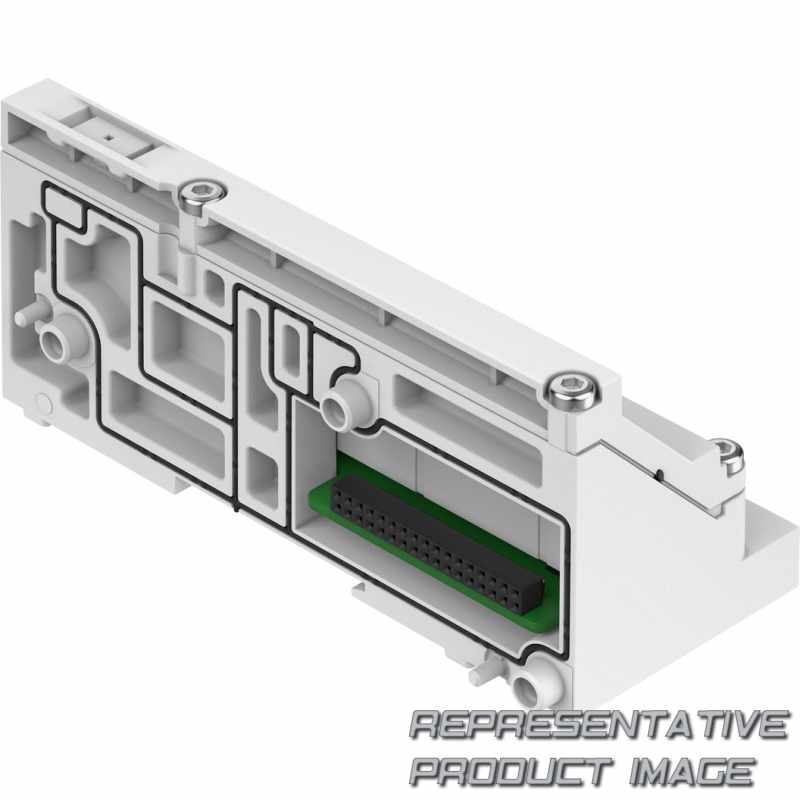

| Material threaded sleeve | Nickel-plated brass | ||
| Note on materials | RoHS-compliant | ||
| Communication interface, shielding | yes | ||
| Communication interface, number of pins/wires | 4 | ||
| Communication interface, connection type | 2x socket | ||
| Max. cable length | 50 m system communication | ||
| Max. tightening torque | 1,7 Nm | ||
| Ambient temperature | -5 °C ... 50 °C | ||
| Degree of protection | IP65 IP67 | ||
| Relative air humidity | 5 - 95% Non-condensing | ||
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | ||
| CE marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | ||
| KC mark | KC-EMV | ||
| Power transmission, number of pins/wires | 4 | ||
| Power transmission, connection type | Socket | ||
| Power supply, number of pins/wires | 4 | ||
| Power supply, connection type | Plugs | ||
| Permissible voltage fluctuation of load | ± 10% | ||
| Electrical isolation of outputs between channel - internal communication | yes | ||
| Nominal operating voltage DC of load | 24 V | ||
| Max. power supply | 2 x 4 A (external fuse required) | ||
| Intrinsic current consumption at nominal operating voltage for electronics/sensors | Typically 30 mA | ||
| Dimensions (W x L x H) | 43.1 mm x 107.5 mm x 50.2 mm | ||
| Valve terminal structure | Valve sizes can be mixed | ||
| Diagnostics per internal communication | Electronics/sensors overvoltage Electronics/sensors undervoltage | ||
| Reverse polarity protection | yes |
| Material housing | Painted die cast aluminium PA-reinforced | ||
| Type of mounting | Tie rod | ||
| Communication interface, protocol | AP-COM | ||
| Communication interface, connection technology | M8x1, D-coded according to EN 61076-2-114 | ||
| Communication interface, function | System communication XF10 IN / XF20 OUT | ||
| Product weight | 194 g | ||
| Nominal altitude of use | <= 2000 m NHN | ||
| Note on degree of protection | In assembled state Unused connections sealed | ||
| Protection against direct and indirect contact | PELV SELV | ||
| Storage temperature | -40 °C ... 70 °C | ||
| Corrosion resistance class CRC | 3 - high corrosion stress | ||
| CE mark (see declaration of conformity) | To EU EMC Directive In accordance with EU RoHS Directive | ||
| Approval | RCM trademark | ||
| Power transmission, connection technology | M8x1, A-coded to EN 61076-2-104 | ||
| Power transmission, function | Outgoing electronics/sensors and load | ||
| power supply, connection system | M8x1, A-coded to EN 61076-2-104 | ||
| Power supply, function | Incoming electronics/sensors and load | ||
| Permissible voltage fluctuations for electronics/sensors | ± 25% | ||
| Power failure bridging | 10 ms | ||
| Nominal DC operating voltage, electronics/sensors | 24 V | ||
| Intrinsic current consumption at nominal operating voltage load | Typically 15 mA | ||
| Fuse protection (short circuit) | Internal electronic fuse per channel | ||
| Max. number of valve coils | 32 | ||
| Max. number of valve positions | 32 | ||
| Diagnostics via LED | Diagnostics per module Load power supply | ||
| Position of connection | Top |
