4080496 Festo

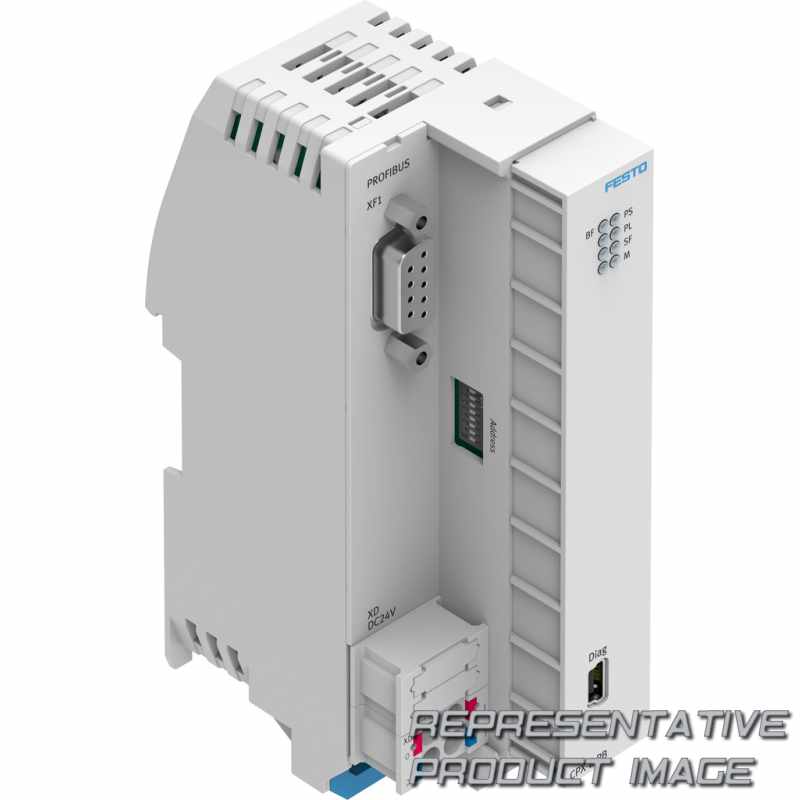

FESTO 4080496 bus module

Name: 4080496 FESTO
Brand: FESTO
SKU: 670833-en-gbp
Price: 506.99 GBP
Availability: SoldOut

CPX-E-PB

£506.99 ~~£671.05~~ -24%

Limited stock only available on quotation

Specifications

Dimensions	42.2 x 125.8 x 76.5 mm

Weight	145g

Technical data

Material housing		PA
Type of mounting		With H-rail
Service interface, number of pins/wires		5
Service interface, connection type		Socket
Fieldbus interface, max. address volume for outputs		64 Byte
Fieldbus interface, connection pattern		00995638
Field bus, connection pattern		9
Field bus, connection type		Socket
Fieldbus interface		PROFIBUS
Field bus interface, electrical isolation		yes
Max. address volume, inputs		64 Byte
Max. address volume, outputs		64 Byte
Note on ambient temperature		-5 - 60°C for vertical installation
Degree of protection		IP20
Relative air humidity		95 % Non-condensing
Corrosion resistance class CRC		0 - No corrosion stress
Vibration resistance		Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6
CE mark (see declaration of conformity)		To EU EMC Directive
Approval		RCM trademark c UL us listed (OL)
Power supply, conductor diameter		0,2 mm² ... 1,5 mm²
Power supply, number of pins/wires		4
Power supply, connection type		Terminal strip
Permissible voltage fluctuations for electronics/sensors		± 25%
Nominal DC operating voltage, electronics/sensors		24 V
Intrinsic current consumption at nominal operating voltage for electronics/sensors		Typically 75 mA
Module parameters		Undervoltage diagnostics Process value representation of analogue modules
Max. number of modules		10
Diagnostics via LED		Bus fault Force mode Power supply, electronics/sensors Load power supply System fault
Dimensions (W x L x H)		42.2 x 125.8 x 76.5 mm

Note on materials		Contains paint-wetting impairment substances RoHS-compliant
Service interface, connection pattern		00995868
Service interface, connection technology		USB 2.0 type B mini
Service interface, function		Diagnostics and parameterisation
Fieldbus interface, max. address volume for inputs		64 Byte
Field bus, protocol		PROFIBUS DP
Field bus, connection system		Sub-D
Fieldbus interface, function		Bus connection incoming/outgoing
Field bus interface, transmission rate		1.5 Mbps 12 Mbit/s 187.5 kbit/s 19.2 kbit/s 3 Mbit/s 500 kbit/s 6 Mbit/s 9.6 kbit/s 93.75 kbit/s
Note on inputs		62 bytes with I/O diagnostic interface 63 bytes with status bits 64 bytes without diagnostics
Note on outputs		62 bytes with I/O diagnostic interface 64 bytes with status bits 64 bytes without diagnostics
Product weight		145 g
Ambient temperature		-5 °C ... 50 °C
Protection against direct and indirect contact		PELV
Storage temperature		-20 °C ... 70 °C
Shock resistance		Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27
Certificate issuing authority		UL E239998
KC mark		KC-EMV
Power supply, note on conductor diameter		0.2 - 2.5 mm² for flexible conductors without wire end sleeves
Power supply, connection pattern		00995847
power supply, connection system		Spring-loaded terminal
Power supply, function		Electronics and sensors
Power failure bridging		20 ms
Max. power supply		8 A
Operator controls		DIL switch
System parameters		Diagnostic memory Fail-safe response Force mode System start
Configuration support		GSD file
Grid dimension		18,9 mm
Diagnostics via bus		Wire break Short circuit Parameterisation error Overflow buffer Upper limit value violated Transmission error Lower limit value not observed Undervoltage Watchdog/I/O status Requested function not supported Not ready for data exchange
