| Operating medium | Compressed air to ISO 8573-1:2010 [-:-:-] | ||
| Note on forced dynamization | Switching frequency min. 1/week | ||
| Flow direction | Non-reversible | ||
| Mounting position | optional | ||
| Type of reset | Mechanical spring | ||
| Operating pressure | 3,5 bar ... 8 bar | ||
| Standard nominal flow rate | 120 l/min | ||
| Valve function | 3/2-way, closed, monostable | ||
| Material seals | NBR TPE-U(PU) | ||
| Note on materials | RoHS-compliant | ||
| Pneumatic connection, port 2 | G1/8 | ||
| Type of mounting | With through-hole | ||
| Ambient temperature | -10 °C ... 60 °C |
| Explosion protection | Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) | ||

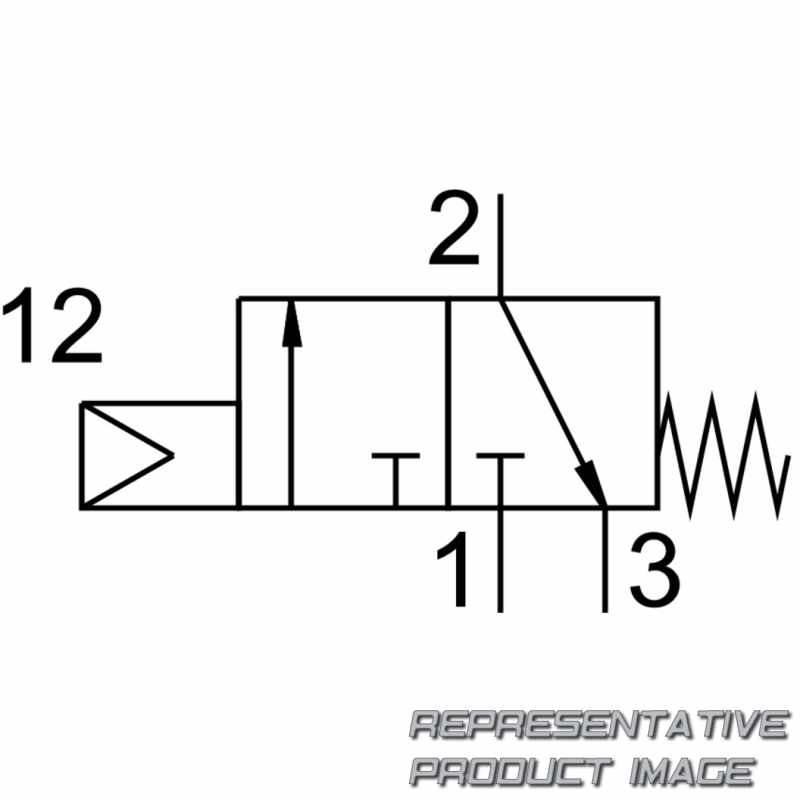

| Symbol | 00991106 | ||
| Type of piloting | Pilot actuated | ||
| Sealing principle | Soft | ||
| Design | Piston seat | ||
| pneumatic working port | G1/8 | ||
| Type of actuation | Mechanical | ||
| Material housing | Aluminium | ||
| Material cover | POM | ||
| Pneumatic connection, port 3 | G1/8 | ||
| Pneumatic connection, port 1 | G1/8 | ||
| Actuating force | 8 N | ||
| Media temperature | -10 °C ... 60 °C |
