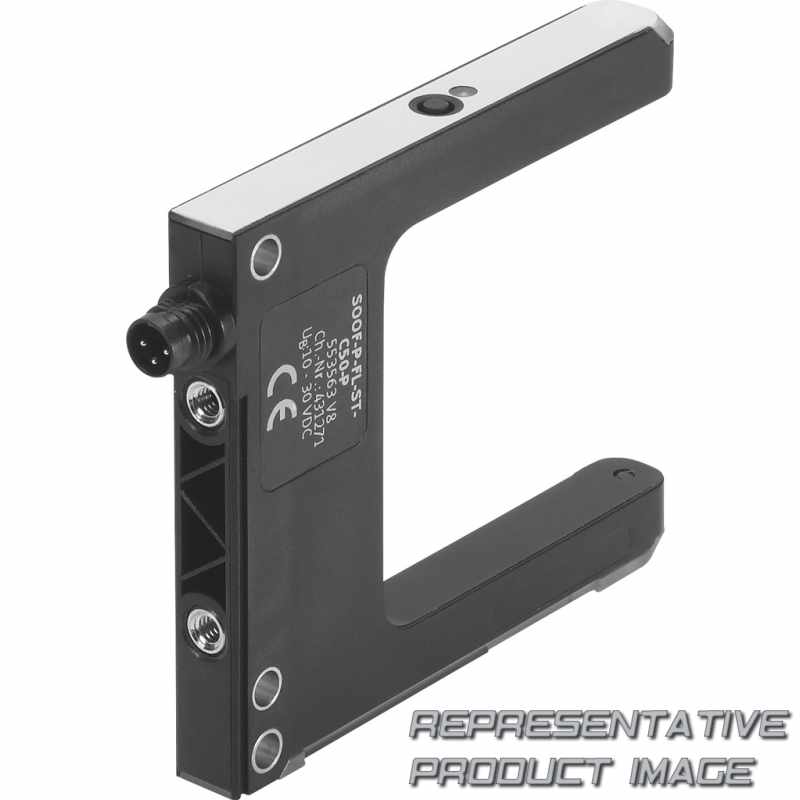

FESTO 553563 fork light barrier

Name: 553563 FESTO
Brand: FESTO
SKU: 678490-en-gbp
Price: 165.53 GBP
Availability: InStock

SOOF-P-FL-ST-C50-P

£165.53

2 pcs. with 1 to 3 days delivery to United States

Specifications

Pollution degree		3
Corrosion resistance class CRC		0 - No corrosion stress
Insulation voltage		500 V
Setting options		Teach-in
Material housing		PC
Fork gap		50 mm
Electrical connection		3-pin M8x1 Plugs
No-load supply current		30 mA
Operational voltage range DC		10 V ... 30 V
Max. output current		100 mA
Hysteresis		≤ 0,25 mm
Switching output		PNP
Ambient temperature		-10 °C ... 60 °C
Type of light		Red
Measuring principle		Optoelectronic
Note on materials		RoHS-compliant
CE mark (see declaration of conformity)		To EU EMC Directive In accordance with EU RoHS Directive
Symbol		00991641

LABS (PWIS) conformity		VDMA24364 zone III
Immunity to surge		0,8 kV
Degree of protection		IP67
Switching status indication		Yellow LED
Product weight		30 g
Size		Fork 50x55 mm
Reverse polarity protection		For operating voltage connections
Residual ripple		10 %
Short circuit current rating		Pulsed
Max. switching frequency		2.000 Hz
Switching element function		Switchable
Repetition accuracy		0,03 mm
Min. object diameter		0,3 mm
Measurement method		Fork light barrier
Measured variable		Position
CE marking (see declaration of conformity)		To UK instructions for EMC To UK RoHS instructions
Approval		RCM trademark c UL us listed (OL)
