FESTO 538341 proximity sensor

Name: 538341 FESTO
Brand: FESTO
SKU: 680575-en-gbp
Price: 111.44 GBP
Availability: InStock

SIEF-Q40S-PA-S-2L

£111.44

2 pcs. with 1 to 3 days delivery to United States

Specifications

Series (SIEF)	Proximity sensor, inductive, with reduction factor 1 for all met- als, welding fi eld immune
Design (Q40)	Cube 40 mm
Mounting type (S)	Partially ﬂ ush

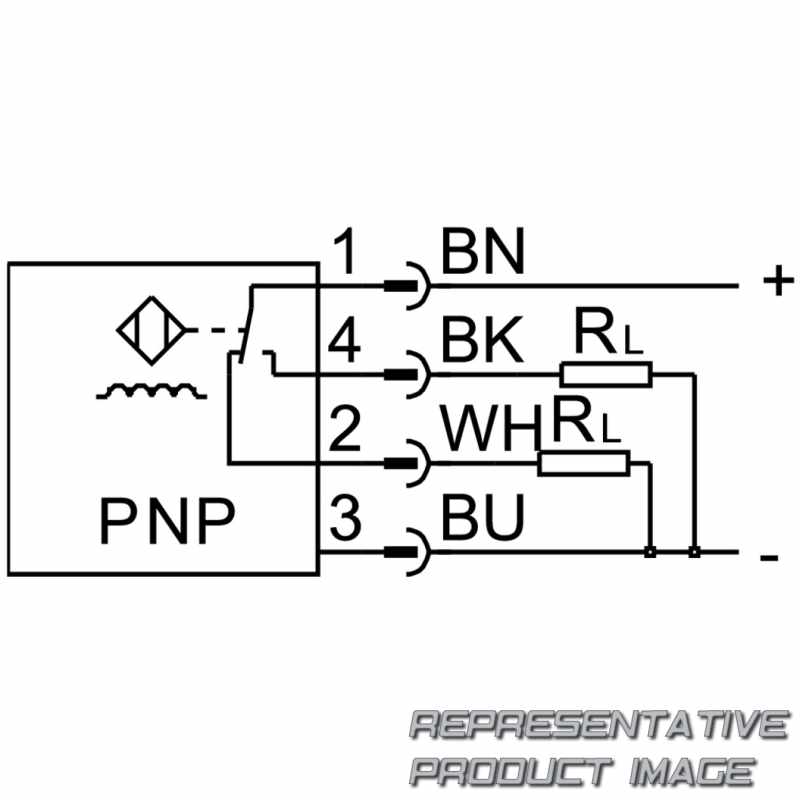

Switching input/output (P)	PNP

Switching element function (A)	Antivalent
Electrical connection (S)	Plug M8x1, 4-pin
Display (2L)	Switching status and ready status
Housing material	Standard

Selection of sensor design		Standard
Additional information for sensor selection		Reduction factor 1, resistant to magnetic fields
Immunity to magnetic fields		Magnetic direct and alternating field
Switching status indication		Yellow LED
Material housing		PA PBT-reinforced
Mounting type		Partially flush
Size		40x40x65 mm
Reverse polarity protection		For all electrical connections
Residual ripple		10 %
Short circuit current rating		Pulsed
Max. output current		200 mA
Hysteresis		1,05 mm ... 5,25 mm
Switching output		PNP
Ambient temperature		-30 °C ... 85 °C
Assured operating distance		28,35 mm
Measuring principle		Inductive
Approval		RCM trademark c UL us listed (OL)
Conforms to standard		EN 60947-5-2

Electrical output		PNP
Corrosion resistance class CRC		0 - No corrosion stress
Degree of protection		IP67
Ready status indication		Green LED
Product weight		156 g
Type of mounting		With through-hole
Electrical connection		4-pin Fixcon M12x1 Plugs
No-load supply current		≤ 15 mA
Operational voltage range DC		10 V ... 65 V
Voltage drop		≤ 1,8 V
Max. switching frequency DC		250 Hz
Switching element function		Antivalent
Repetition accuracy		0,7 mm
Reduction factors		Aluminium = 1.0 Stainless steel St 18/8 = 1.0 Copper = 1.0 Brass = 1.0 Steel St 37 = 1.0
Rated operating distance		35 mm
CE mark (see declaration of conformity)		To EU EMC Directive
Symbol		00991708
Design		Square
