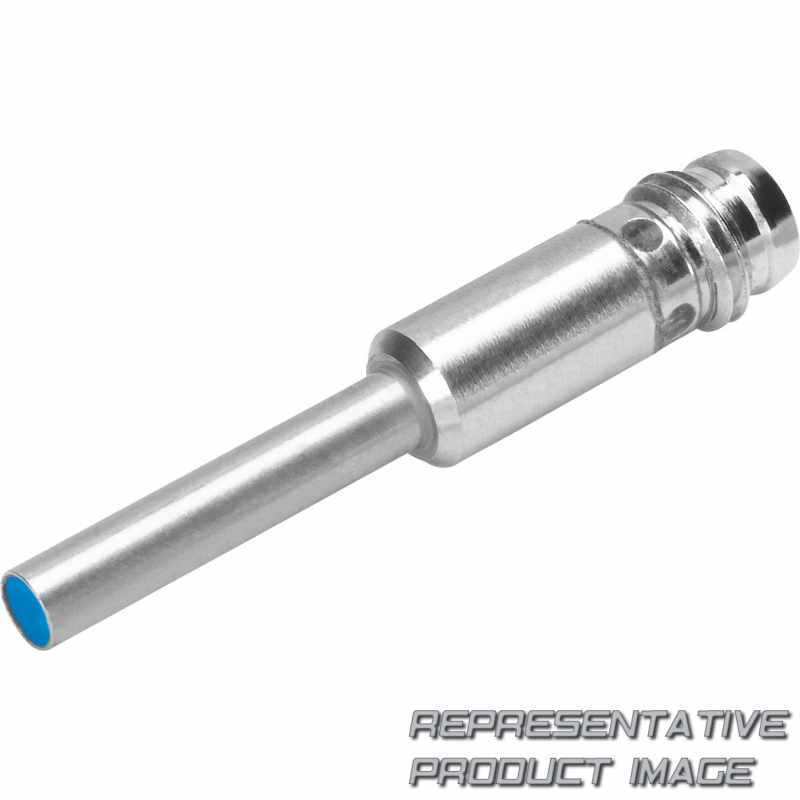

FESTO 150367 proximity sensor

Name: 150367 FESTO
Brand: FESTO
SKU: 683615-en-gbp
Price: 114.47 GBP
Availability: InStock

SIEN-4B-PO-S-L

£114.47

3 pcs. with 1 to 3 days delivery to United States

Specifications

Series (SIEN)	Proximity sensor, inductive, with standard switching distance
Design (4)	Round, diameter 4 mm
Mounting type (B)	Flush
Switching input/output (P)	PNP

Switching element function (O)	N/C contact
Electrical connection (S)	Plug
Display (L)	Switching status
Housing material	Standard

Selection of sensor design		Standard
Additional information for sensor selection		with standard sensing distance
Switching status indication		Yellow LED
Product weight		9 g
Type of mounting		Clamped
Electrical connection		3-pin M8x1 Plugs
No-load supply current		≤ 10 mA
Operational voltage range DC		10 V ... 30 V
Voltage drop		2 V
Max. switching frequency DC		3.000 Hz
Switching element function		N/C contact
Repetition accuracy		0,04 mm
Reduction factors		Aluminium = 0.4 Stainless steel St 18/8 = 0.7 Copper = 0.3 Brass = 0.4 Steel St 37 = 1.0
Rated operating distance		0,8 mm
Approval		RCM trademark c UL us listed (OL)
Conforms to standard		EN 60947-5-2

Electrical output		PNP
Degree of protection		IP67
Material housing		High-alloy stainless steel
Mounting type		Flush
Size		4 mm
Reverse polarity protection		For all electrical connections
Residual ripple		10 %
Short circuit current rating		Pulsed
Max. output current		200 mA
Max. switching frequency		3.000 Hz
Switching output		PNP
Ambient temperature		-25 °C ... 70 °C
Assured operating distance		0,64 mm
CE mark (see declaration of conformity)		To EU EMC Directive
Symbol		00991614
