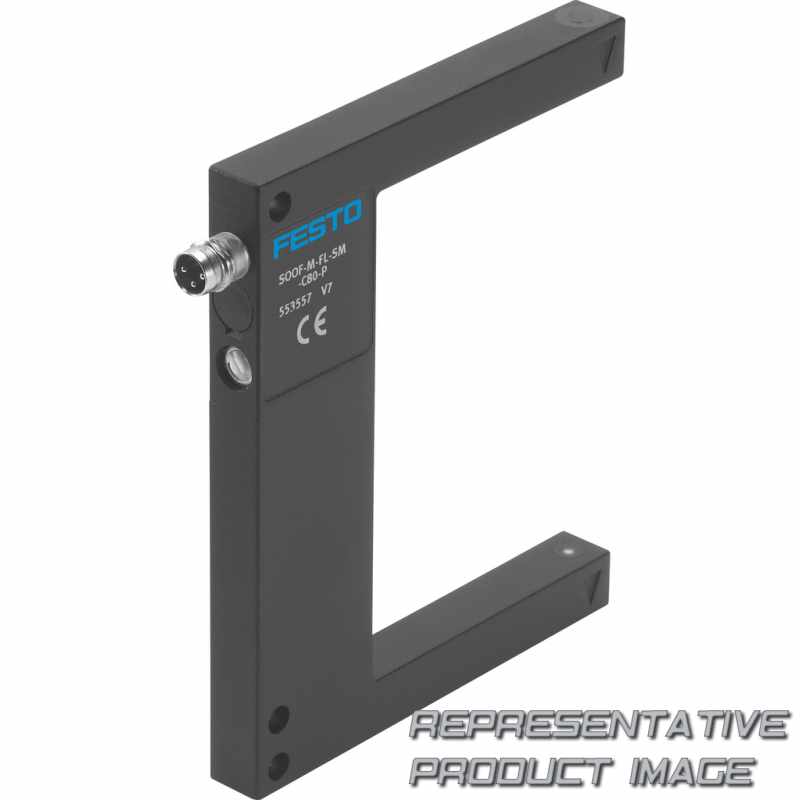

FESTO 553557 fork light barrier

Name: 553557 FESTO
Brand: FESTO
SKU: 681670-en-gbp
Price: 241.56 GBP
Availability: InStock

SOOF-M-FL-SM-C80-P

£241.56

2 pcs. with 1 to 3 days delivery to United States

Specifications

Pollution degree		3
Immunity to surge		0,8 kV
Degree of protection		IP67
Switching status indication		Yellow LED
Product weight		118 g
Size		Fork 80x55 mm
Reverse polarity protection		For all electrical connections
Residual ripple		± 5%
IO-Link, Data storage required		73 Byte
IO-Link, Service data IN		16 bit maximum signal level 16 bit minimum signal level 16 bit temperature 32 bit switching counter 8 bit teach-in quality
IO-Link, Process data length IN		2 bytes
IO-Link, Port class		A
IO-Link, communication mode		COM2 (38.4 kBaud)
IO-Link, Profile		Smart sensor profile
Protocol		IO-Link®
Timer function		Via IO-Link®
Note on switching frequency		5000 Hz with standard mode 1500 Hz with high resolution mode 250 Hz with power mode 8000 Hz with speed mode
Hysteresis		≤ 0,1 mm
Switching output		Push-pull NPN PNP
Ambient temperature		-25 °C ... 60 °C
Min. object diameter		0,3 mm
Measurement method		Fork light barrier
Measured variable		Position
CE mark (see declaration of conformity)		To EU EMC Directive
Symbol		00995956

Corrosion resistance class CRC		0 - No corrosion stress
Insulation voltage		500 V
Setting options		IO-Link® Potentiometer
Material housing		Die-cast zinc, coated
Fork gap		80 mm
Electrical connection		3-pin M8x1 Plugs
No-load supply current		30 mA
Operational voltage range DC		10 V ... 30 V
IO-Link, Min. cycle time		2.3 ms
IO-Link, Process data content IN		1 bit BDC (switching signal) 1 bit BDC (stability) 12 bit PDV (signal level)
IO-Link, Process data length OUT		0 bytes
IO-Link, SIO-Mode support		Yes
IO-Link, Function classes		Binary data channel (BDC) Process data variable (PDV) Identification Diagnostics Teach channel
IO-Link, Protocol version		Device V 1.1
Short circuit current rating		Pulsed
Max. output current		100 mA
Max. switching frequency		5.000 Hz
Switching element function		Switchable
Repetition accuracy		0,02 mm
Note on min. object diameter		0.3 mm with standard mode 0.2 mm with high resolution mode 1.0 mm with power mode 0.3 mm with speed mode
Type of light		Red
Measuring principle		Optoelectronic
Note on materials		Contains paint-wetting impairment substances RoHS-compliant
Approval		RCM trademark c UL us listed (OL)
