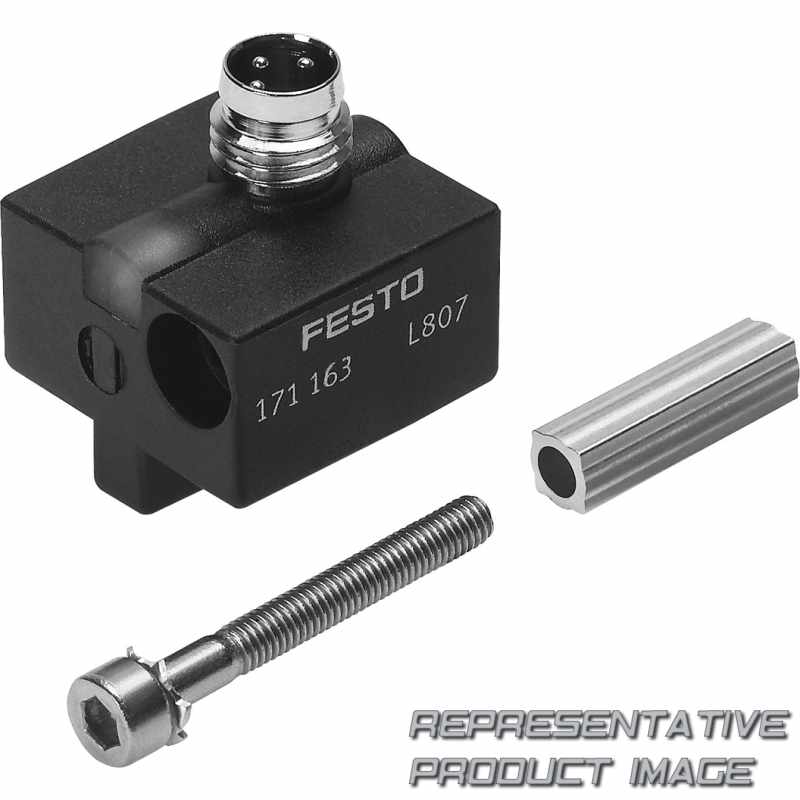

FESTO 171163 proximity sensor

Name: 171163 FESTO
Brand: FESTO
SKU: 666093-en-gbp
Price: 51.98 GBP
Availability: SoldOut

SMEO-8E-S-LED-24

£51.98

Limited stock only available on quotation

Specifications

Series (SMEO)	Proximity sensor, magnetic, reed
Design type (8)	For T-slot
Sensor version (E)	Mounting with accessories

Electrical connection, cable length (S)	Plug M8x1 with cable, 0.3 m
Switching status indication (LED)	Yellow LED
Rated operating voltage (24)	24 V DC

Pollution degree		3
Immunity to surge		0,8 kV
Degree of protection		IP65 IP67
Material housing		Wrought aluminium alloy TPE-U(PU) High-alloy stainless steel
Product weight		10 g
Tightening torque		0,5 Nm
Material electrical contact		Brass Nickel-plated
Electrical connection 1, connection pattern		00991155
Electrical connection 1, connector system		M8x1, A-coded, to EN 61076-2-104
Reverse polarity protection		no
Operational voltage range AC		12 V ... 30 V
Short circuit current rating		no
Max. switching capacity AC		10 VA
Max. switching frequency		800 Hz
Switch-on time		≤ 0,5 ms
Switching output		Contacting, bipolar
Ambient temperature		-40 °C ... 60 °C
Measured variable		Position
Note on materials		RoHS-compliant
CE mark (see declaration of conformity)		To EU EMC Directive In accordance with EU RoHS Directive
Symbol		00991148
Design		For T-slot

LABS (PWIS) conformity		VDMA24364-B2-L
Insulation voltage		50 V
Switching status indication		Yellow LED
Housing colour		Black
Mounting position		optional
Type of mounting		With accessories
Connection outlet orientation		Lateral
Electrical connection 1, number of connections/cores		3
Electrical connection 1, connection type		Plugs
Operational voltage range DC		12 V ... 30 V
Overload protection		Not available
Max. switching capacity DC		10 W
Max. output current		500 mA
Switch-off time		0,03 ms
Switching element function		N/O contact
Repetition accuracy		0,2 mm
Measuring principle		Magnetic reed
Instructions on use		Support / actuator-sensor overview "The right sensor for the actuator"
CE marking (see declaration of conformity)		To UK instructions for EMC To UK RoHS instructions
Approval		RCM trademark
Conforms to standard		EN 60947-5-2
